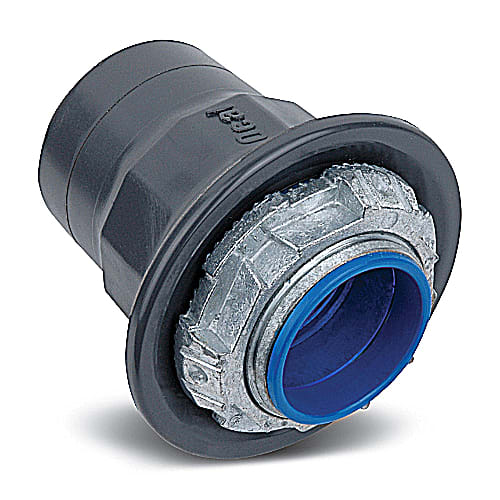

Ocal / Thomas & Betts - Ocal HUB3/4-G 3/4 Inch Ocal Gray Hub
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 704508388638
Applications - To Positively Bond Conduit to Box or Enclosure
Catalog Number - HUB3/4-G
Color - Dark Gray
ERP_productname - OCAL HUB3/4-G 3/4 OCAL HUB GRAY
Packaging
1 ea
EAN
00704508388638
Part #
194872
Catalog #
HUB3/4-G
Commercial reference
HUB3/4-G
12-Digit UPC:
704508388638
Applications:
To Positively Bond Conduit to Box or Enclosure
Catalog Number:
HUB3/4-G
Color:
Dark Gray
ERP_productname:
OCAL HUB3/4-G 3/4 OCAL HUB GRAY
Family Brand Name:
ABB
Finish:
PVC Coated
Material:
Zinc
Size:
3/4 in
Sub Brand:
Ocal®
Trade Size:
3/4 Inch
Type:
Hub Connector
SoneparProductId:
SKU_US_57992025

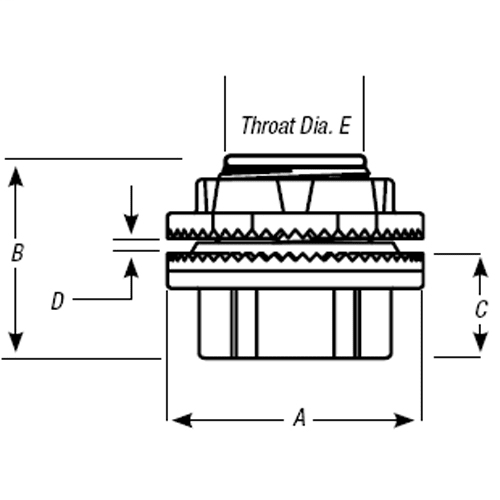

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 3/4 Inch/21 Metric, Overall Diameter 1.44 Inch/36.58 Millimeters, Maximum Panel Thickness 0.19 Inch/4.83 Millimeters, Throat Diameter 0.78 Inch/19.81 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray Features: Coated with a nominal .002 inch (2 mil) blue urethane on the interior, before PVC Coating is applied.; A minimum .040 inch (40 mil) PVC Coating is bonded to the exterior.; Innovative sealing ring and groove.; Hexagonal body and locknut design.; Insulated throat and sharper and deeper teeth.; Pressure sealing sleeves to protect the connection.
