Ocal / Thomas & Betts - Ocal HUB3-G 3 Inch Ocal Gray Hub
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 704508388706
Applications - Positively Bonds Conduit to Box or Enclosure
Catalog Number - HUB3-G
Color - Gray
ERP_productname - OCAL HUB3-G 3-IN PVC COATED HUB
Packaging
1 ea
EAN
00704508388706
Part #
117374
Catalog #
HUB3-G
Commercial reference
HUB3-G
12-Digit UPC:
704508388706
Applications:
Positively Bonds Conduit to Box or Enclosure
Catalog Number:
HUB3-G
Color:
Gray
ERP_productname:
OCAL HUB3-G 3-IN PVC COATED HUB
Family Brand Name:
Thomas & Betts (T&B)
Finish:
PVC Coated
Material:
Zinc
Size:
3 in
Sub Brand:
Ocal®
Trade Size:
3 Inch
Type:
Hub Connector
SoneparProductId:
SKU_US_58087749

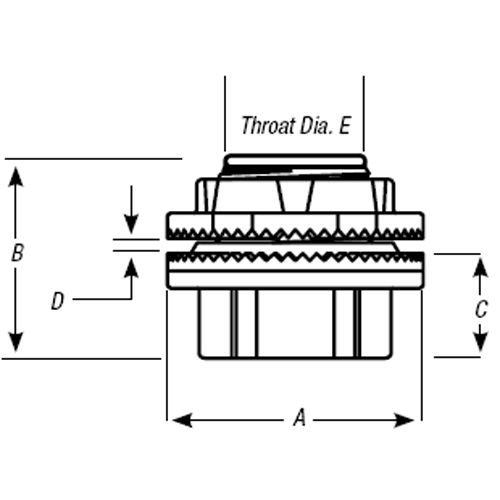

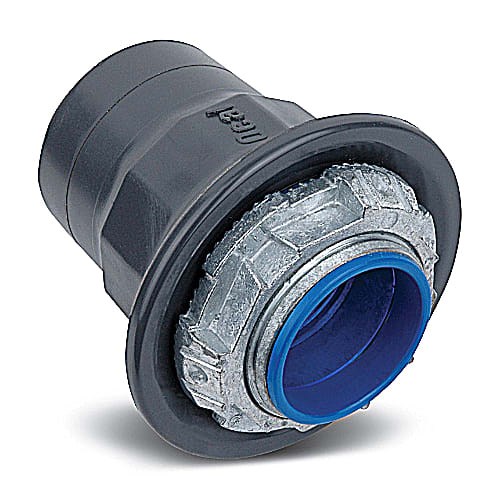

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 3 Inch/78 Metric, Overall Diameter 4.38 Inch/111.25 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 2.97 Inch/75.44 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray Features: Hexagonal body and locknut design.; Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.; Innovative sealing ring and groove.; A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.; Pressure sealing sleeves to protect the connection.; Insulated throat and sharper and deeper teeth. - Notes: Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.; Dimensional values are of uncoated fittings.
