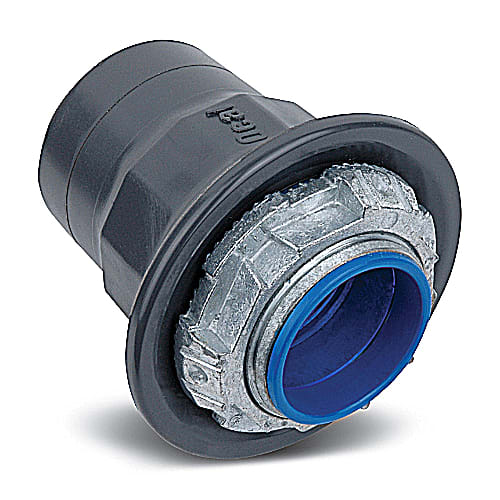

Ocal / Thomas & Betts - Ocal HUB4-G 4 Inch Ocal Gray Hub
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 704508388850
Applications - Positively Bonds Conduit to Box or Enclosure
Catalog Number - HUB4-G
Color - Gray
ERP_productname - OCAL HUB4-G 4 OCAL HUB GRAY
Packaging
1 ea
EAN
00704508388850
Part #
131311
Catalog #
HUB4-G
Commercial reference
HUB4-G
12-Digit UPC:
704508388850
Applications:
Positively Bonds Conduit to Box or Enclosure
Catalog Number:
HUB4-G
Color:
Gray
ERP_productname:
OCAL HUB4-G 4 OCAL HUB GRAY
Family Brand Name:
Thomas & Betts (T&B)
Finish:
PVC Coated
Material:
Zinc
Size:
4 in
Sub Brand:
Ocal®
Trade Size:
4 Inch
Type:
Hub Connector
SoneparProductId:
SKU_US_58204400

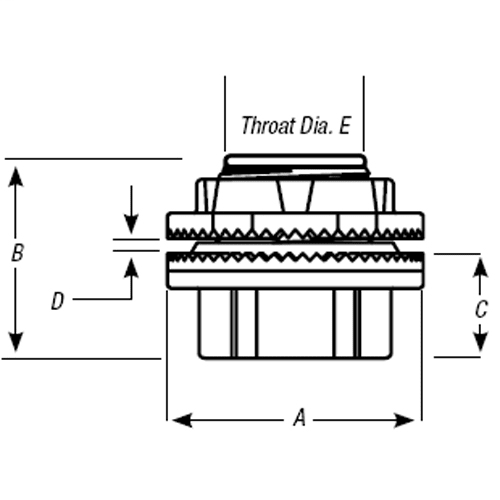

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 4 Inch/103 Metric, Overall Diameter 5.50 Inch/139.70 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 3.88 Inch/98.55 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray Notes: Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.; Dimensional values are of uncoated fittings. - Features: Insulated throat and sharper and deeper teeth.; A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.; Innovative sealing ring and groove.; Hexagonal body and locknut design.; Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.; Pressure sealing sleeves to protect the connection.
