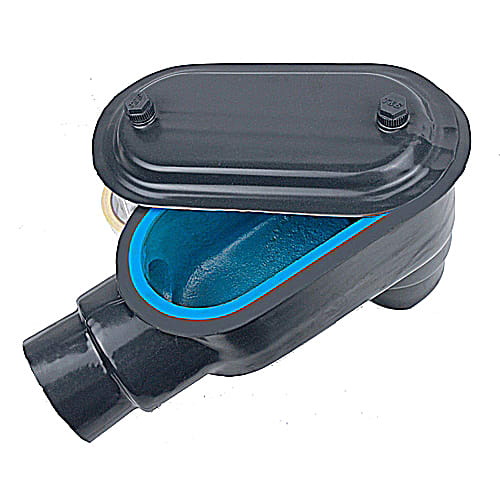

Ocal / Thomas & Betts - Ocal LB47-G 1-1/4" PVC-Coated Ocal-Blue® LB-Style Conduit Body, Form-7 - Gray

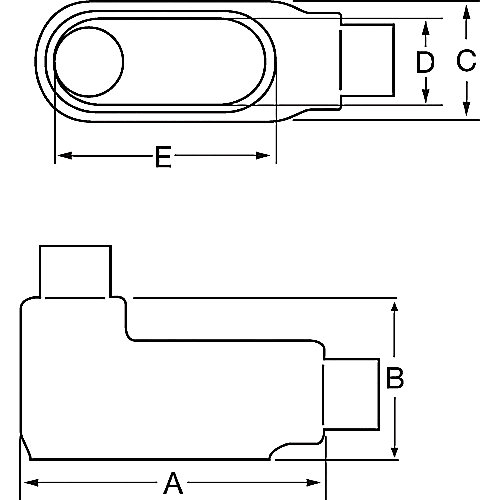

PVC Coated Conduit Body, LB Shape, Form 7, Size 1-1/4 Inch/35 Metric, Iron, Dark Gray Application: Provide for access to conductors for maintenance and future system changes; Make 90± bends in conduit runs; Provide openings for making splices and taps in conductors; Connect conduit sections; Act as pull outlets for conductors being installed; Provide taps for branch conduit runs - Features: Bodies are designed with a flat back, allowing more cubic inch capacity. The flat back also keeps the body more stable during installation, requiring fewer conduit straps.; Ocal pressure-sealing sleeves on all threaded hubs.; A minimum of .040 in. PVC coating is bonded to the exterior.; Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws.; Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover.; The conduit body and cover are double coated with a nominal .002 in. blue urethane on both the interior and exterior, before PVC coating is applied - Notes: Dimensional values are of uncoated conduit bodies.; Available in dark gray, white and light blue. Custom colors are also available upon request. Please contact Technical Services-888-862-3289 - Certifications: CSA; UL
