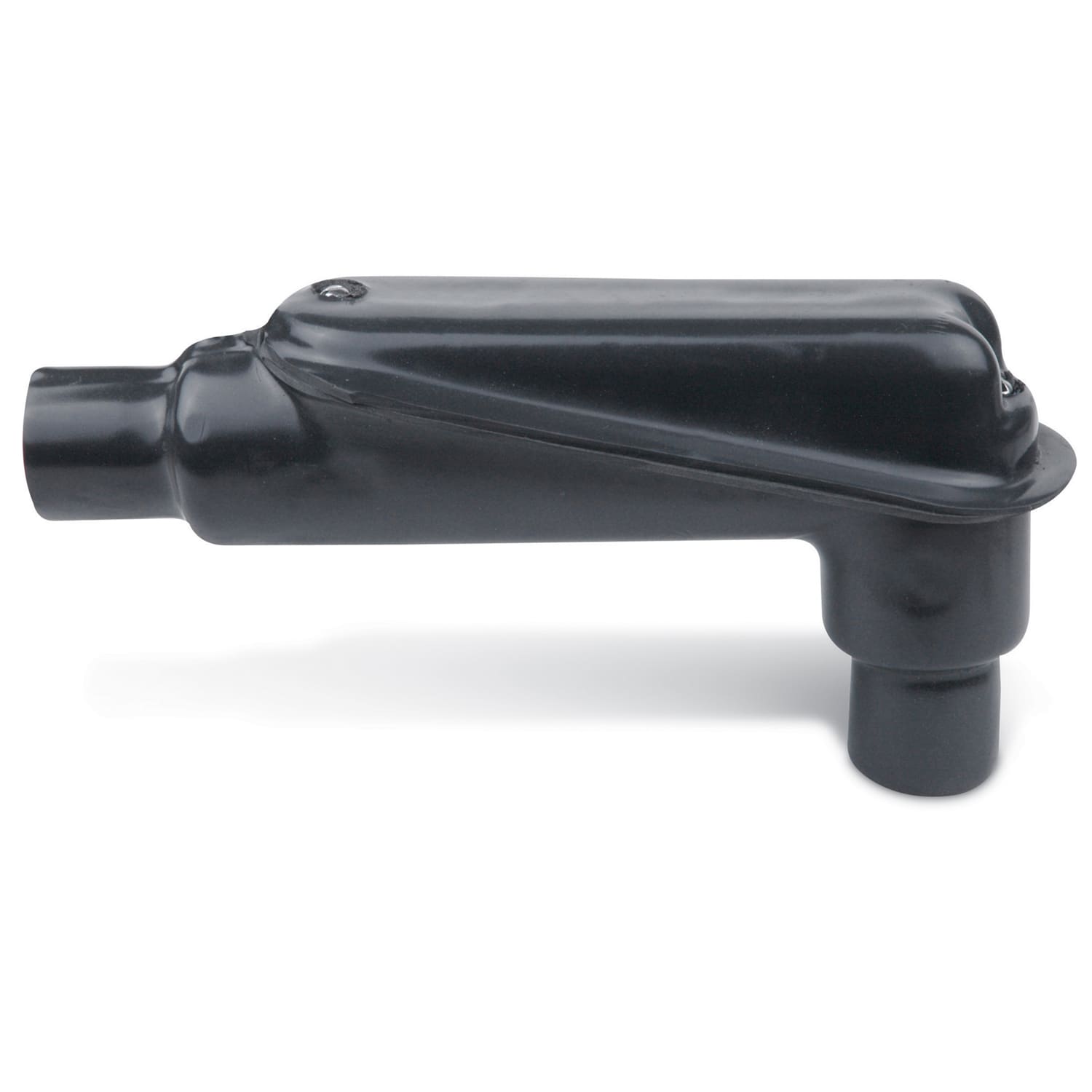

Ocal / Thomas & Betts - Ocal LBD8800-G 3" PVC-Coated Ferrous Iron Rigid 90± Pulling Elbow - Gray

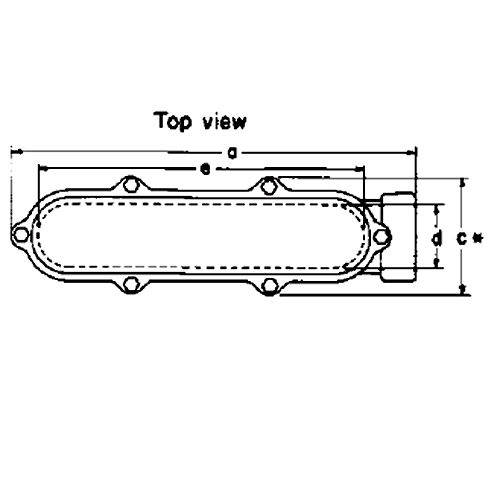

PVC Coated Pulling Elbow, 90 Degree Bend, With Pressure-Sealing Sleeves Seal Connections, Pipe Size 3 Inch/78 Metric, Gray Iron, Dark Gray Features: Coated with a nominal .002 in. (2 mil) blue urethane on both interior and exterior; Nominal .040 in. (40 mil) PVC coating bonded to exterior; Cover openings on an angle, permitting conductors to be pulled straight through hubs from either direction; Taper threaded hubs with integral bushings; Pressure-sealing sleeves seal connections; Domed cover permits easy conductor bends, relieves strain on insulation; Shipped complete with elbow, cover and cover screws. - Application: Provide for conduit service entrance to buildings; Make 90 degree bends in conduit system, allowing straight pull in either direction; Provide for conductor entrance to motors; Provide access to wiring for maintenance and future system changes; Act as pull outlets especially for conductors that are stiff due to large size or type of insulation - Notes: Dimensional values are prior to PVC coating; Ratings are prior to PVC coating; Metric size designator (ANSI C80.1-1994)
