OZ-Gedney Co. - O-Z/Gedney 4Q-4250 2-1/2" 45deg Liquidtight Connector, Malleable Iron Body, Steel Ferrule
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783126619850
Applications - For Liquidtight Flexible Metal Conduit
Catalog Number - 4Q-4250
ERP_productname - OZG 4Q-4250 2-1/2 IN 45 DEG CONN LFMC
Family Brand Name - O-Z/Gedney
Packaging
1 ea
EAN
00783126619850
Part #
280228
Catalog #
4Q-4250
Commercial reference
4Q-4250
12-Digit UPC:
783126619850
Applications:
For Liquidtight Flexible Metal Conduit
Catalog Number:
4Q-4250
ERP_productname:
OZG 4Q-4250 2-1/2 IN 45 DEG CONN LFMC
Family Brand Name:
O-Z/Gedney
Finish:
Zinc
Material:
Iron
Size:
2-1/2 IN
Tc Connection:
Tapered MNPT Hub
Trade Size:
2-1/2 Inch
Type:
Type 4Q Liquid Tight 45 DEG Connector
SoneparProductId:
SKU_US_59312718

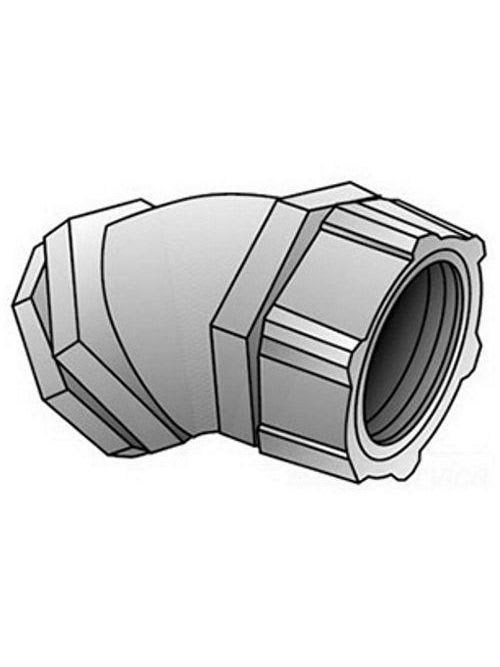

OZ-Gedney Type 4Q Liquid Tight 45 DEG Connector, Size: 2-1/2 IN, Connection: Tapered MNPT Hub, Malleable Iron Body And Nut, Steel Ferrule, Finish: Zinc Electroplated, NEMA Rating: NEMA 4, 4-1/8 IN Width, Dimension A: 5-3/4 IN, 1 IN Thread Length, Third Party Certification: UL File Number 11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20, For Liquidtight Flexible Metal Conduit
