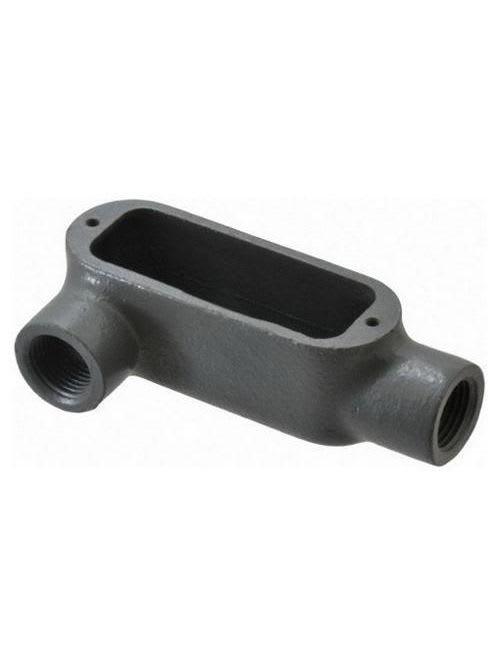

OZ-Gedney Co. - O-Z/Gedney LR37 1 Inch Malleable Iron LR Conduit Body
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783126388022
Applications - For Rigid Conduit And IMC
Catalog Number - LR37
Color - Gray
ERP_productname - OZG LR37 1 IN FORM7 LR COND BODY
Packaging
1 ea
EAN
00783126388022
Part #
253838
Catalog #
LR37
Commercial reference
LR37
12-Digit UPC:
783126388022
Applications:
For Rigid Conduit And IMC
Catalog Number:
LR37
Color:
Gray
ERP_productname:
OZG LR37 1 IN FORM7 LR COND BODY
Family Brand Name:
O-Z/Gedney
Finish:
Aluminum
Heights:
1-7/8 Inch
Length:
6 Inch
Material:
Iron
Tc Connection:
Tapered FNPT
Trade Size:
1 Inch
Type:
Type LR Conduit Body
Widths:
2.75 in
SoneparProductId:
SKU_US_58882408
OZ-Gedney Type LR Conduit Body, 1 IN Hub, Form: 7, Length: 6 IN, 2-3/4 IN Width, 1-7/8 IN Height, Iron, Finish: Zinc Electroplated With Aluminum Enamel, Gray, Connection: Tapered FNPT, 3 (4 AWG) Conductors, 10.5 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No. 18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC section 501-4(B), NEMA: FB-1, FB-2.10, For Rigid Conduit And IMC
