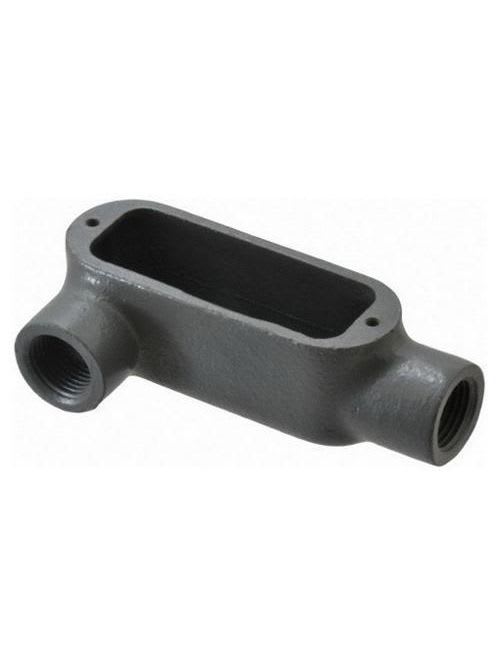

OZ-Gedney Co. - O-Z/Gedney LR57 1-1/2 Inch Malleable Iron LR Conduit Body
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783126388428
Applications - For Rigid Conduit And IMC
Catalog Number - LR57
Color - Gray
ERP_productname - OZG LR57 1-1/2 IN FORM7 LR COND BODY
Packaging
1 ea
EAN
00783126388428
Part #
103609
Catalog #
LR57
Commercial reference
LR57
12-Digit UPC:
783126388428
Applications:
For Rigid Conduit And IMC
Catalog Number:
LR57
Color:
Gray
ERP_productname:
OZG LR57 1-1/2 IN FORM7 LR COND BODY
Family Brand Name:
O-Z/Gedney
Finish:
Aluminum
Heights:
2-9/16 Inch
Length:
7-1/8 Inch
Material:
Iron
Tc Connection:
Tapered FNPT
Trade Size:
1-1/2 Inch
Type:
Type LR Conduit Body
Widths:
3.5625 in
SoneparProductId:
SKU_US_58880829
OZ-Gedney Type LR Conduit Body, 1-1/2 IN Hub, Form: 7, Length: 7-1/8 IN, 3-9/16 IN Width, 2-9/16 IN Height, Iron, Finish: Zinc Electroplated With Aluminum Enamel, Gray, Connection: Tapered FNPT, 3 (2 AWG) Conductors, 27 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No. 18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC section 501-4(B), NEMA: FB-1, FB-2.10, For Rigid Conduit And IMC
