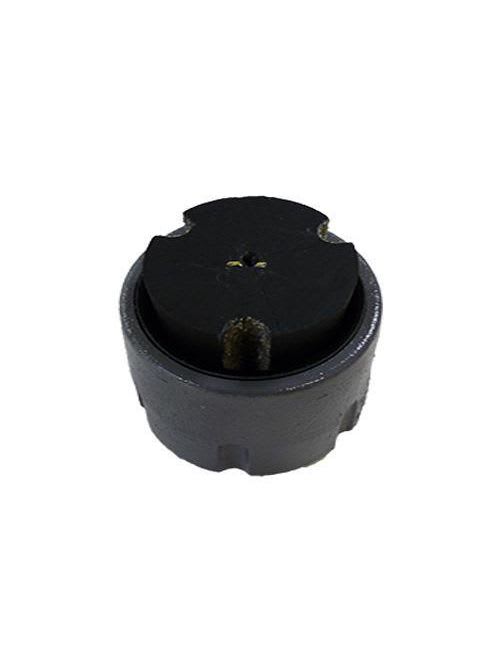

OZ-Gedney Co. - O-Z/Gedney S-1500-1 Cable Support
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783126022513
Applications - TWO or more wires - Indoors - at voltages to 600V
Buy American - Y
Catalog Number - S-1500-1
ERP_productname - OZG S-1500-1 TYPE S 1-1/2 IN CBL SPRT-1
Packaging
1 ea
EAN
00783126022513
Part #
315623
Catalog #
S-1500-1
Commercial reference
S-1500-1
12-Digit UPC:
783126022513
Applications:
TWO or more wires - Indoors - at voltages to 600V
Buy American:
Y
Catalog Number:
S-1500-1
ERP_productname:
OZG S-1500-1 TYPE S 1-1/2 IN CBL SPRT-1
Family Brand Name:
O-Z/Gedney
Finish:
Hot Dipped Galvanized
Material:
Iron
Size:
1-1/2 IN
Trade Size:
1-1/2 Inch
Type:
One Piece Plug Type S
SoneparProductId:
SKU_US_59073687
Cable Support, Type 1-Piece Plug, Body Type Tapered/Knurled, Conduit Type Rigid/IMC/EMT, Voltage Rating 600 V, Conduit Position Vertical, Conductor Size 18 to 8 AWG, 6 to 1/0 AWG, 2/0 to 4/0 AWG, 4/0 AWG to 750 KCMIL (Aluminum/Copper Clad Aluminum/Copper), Conduit Size 1-1/2 Inch, Cable Type Non-Armored, Number of Conductors 2 to 4 (Same Size), Size 2-5/8 Inch Dia x 2-3/8 Inch H, Material Hot Dip Galvanized Malleable/Ductile Iron, Application Indoor, Approval UL 514B, CSA C22.2, Applicable Standard NEC 300-19, With pOZi-grip S-Style Wedging Plug
