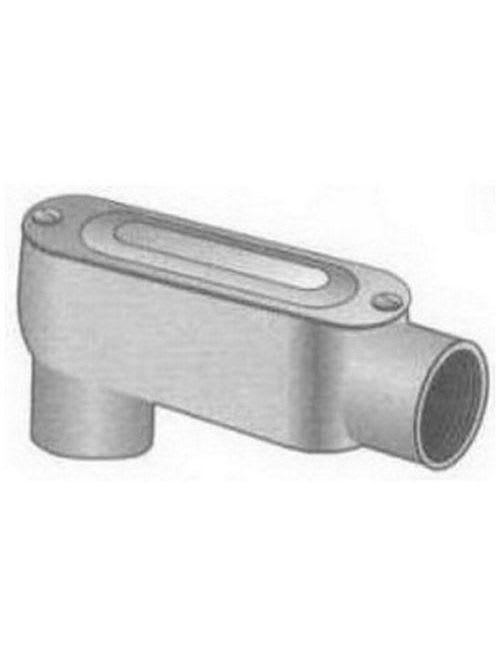

OZ-Gedney Co. - OZG LB125ACG 1-1/4 IN LB BDY/CVR/GS
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783126062229
Applications - For Rigid Conduit And IMC
Catalog Number - LB125ACG
ERP_productname - OZG LB125ACG 1-1/4 IN LB BDY/CVR/GSKT ASSY
Family Brand Name - O-Z/Gedney
Packaging
1 ea
EAN
00783126062229
Part #
112284
Catalog #
LB125ACG
Commercial reference
LB125ACG
12-Digit UPC:
783126062229
Applications:
For Rigid Conduit And IMC
Catalog Number:
LB125ACG
ERP_productname:
OZG LB125ACG 1-1/4 IN LB BDY/CVR/GSKT ASSY
Family Brand Name:
O-Z/Gedney
Finish:
Aluminum
Length:
7-7/8 Inch
Material:
Aluminum
Tc Connection:
Tapered FNPT
Type:
Type LB Conduit Body, Cover And Gasket Assembly
Widths:
2.5 in
SoneparProductId:
SKU_US_58061422
OZ-Gedney Type LB Conduit Body, Cover And Gasket Assembly, 1-1/4 IN Hub, Length: 7-7/8 IN, 2-1/2 IN Width, Conduit Body: Die-Cast, Copper-Free Aluminum, Cover: Type BS Aluminum, Gasket: Type SGN Neoprene, Finish: Aluminum Enamel, Connection: Tapered FNPT, 3 (2 AWG) Conductors, 34 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, NEMA : FB-1, FB-2.10, For Rigid Conduit And IMC
