OZ-Gedney Co. - OZG LL75ACG 3/4 IN LL BDY/CVR/GSKT
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783126062939
Applications - For Rigid Conduit And IMC
Catalog Number - LL75ACG
ERP_productname - OZG LL75ACG 3/4 IN LL BDY/CVR/GSKT ASSY
Family Brand Name - O-Z/Gedney
Packaging
1 ea
EAN
00783126062939
Part #
125195
Catalog #
LL75ACG
Commercial reference
LL75ACG
12-Digit UPC:
783126062939
Applications:
For Rigid Conduit And IMC
Catalog Number:
LL75ACG
ERP_productname:
OZG LL75ACG 3/4 IN LL BDY/CVR/GSKT ASSY
Family Brand Name:
O-Z/Gedney
Finish:
Aluminum
Heights:
1-5/8 Inch
Length:
5-1/8 Inch
Material:
Aluminum
Tc Connection:
Tapered FNPT
Type:
Type LL Conduit Body, Cover And Gasket Assembly
SoneparProductId:
SKU_US_53321296

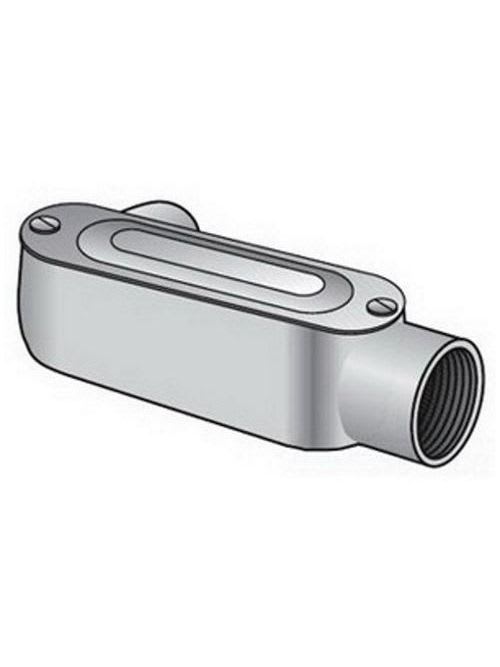

OZ-Gedney Type LL Conduit Body, Cover And Gasket Assembly, 3/4 IN Hub, Length: 5-1/8 IN, 1-5/8 IN Height, Conduit Body: Die-Cast, Copper-Free Aluminum, Cover: Type BS Aluminum, Gasket: Type SGN Neoprene, Finish: Aluminum Enamel, Connection: Tapered FNPT, 3 (6 AWG) Conductors, 7.3 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, NEMA : FB-1, FB-2.10, For Rigid Conduit And IMC
