Panduit Corp - PAN CJ6X88TGRD-C Mini-Com® UTP RJ45
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983204687
Applications - Unshielded
Buy American - Y
Catalog Number - CJ6X88TGRD-C
Color - Red
Packaging
1 ea
EAN
00074983204687
Part #
159109
Catalog #
CJ6X88TGRD-C
Commercial reference
CJ6X88TGRD-C
12-Digit UPC:
074983204687
Applications:
Unshielded
Buy American:
Y
Catalog Number:
CJ6X88TGRD-C
Color:
Red
Country of Origin:
USA
Depths:
1-1/2 Inch
ERP_productname:
PAND CJ6X88TGRD-C MODULE,CAT6A,UTP,8P/8W,UNVI,RD,PK10 0
Family Brand Name:
Panduit Corp.
Heights:
0.71 Inch
Material:
ABS Plastic
Number of Positions:
8
Overall Length:
1.5 in
Sub Brand:
Mini-Com
Type:
8-Wire, Unshielded
Widths:
16 mm
SoneparProductId:
SKU_US_89291788

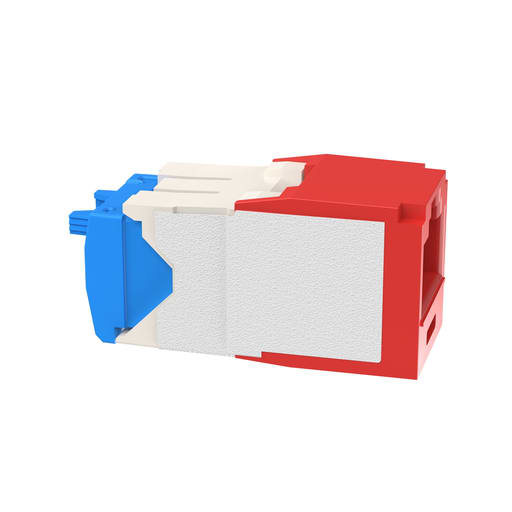

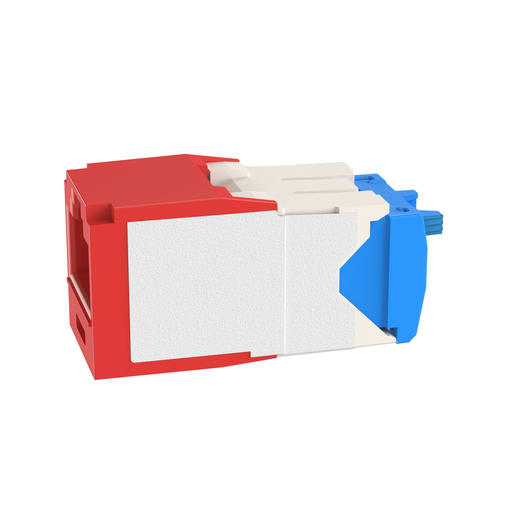

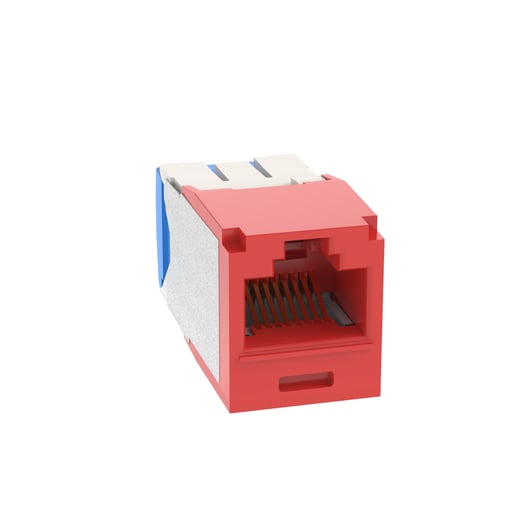

The Mini-Com® Cat 6A UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. Standards and Certifications: Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
