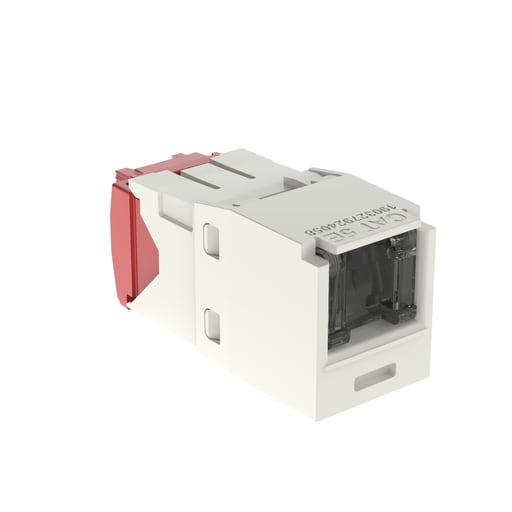

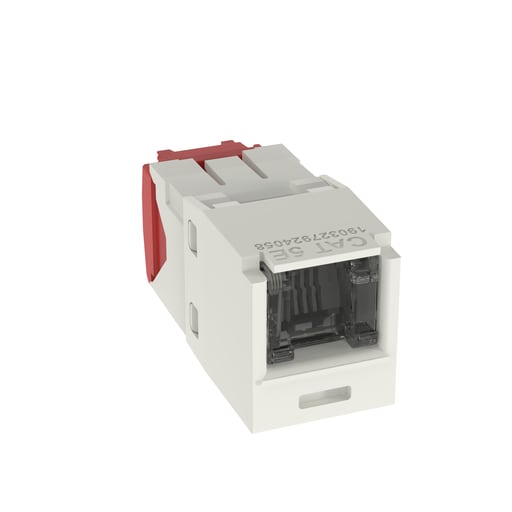

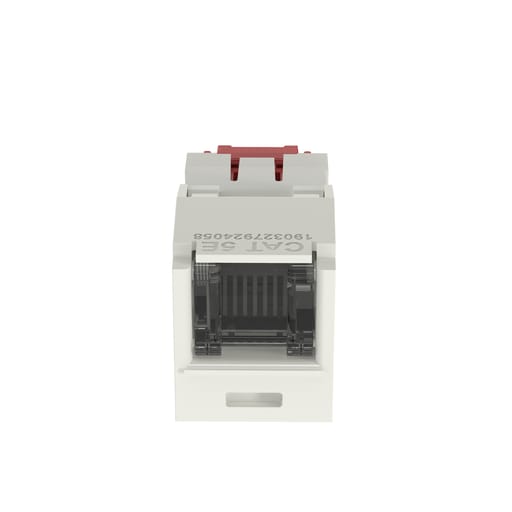

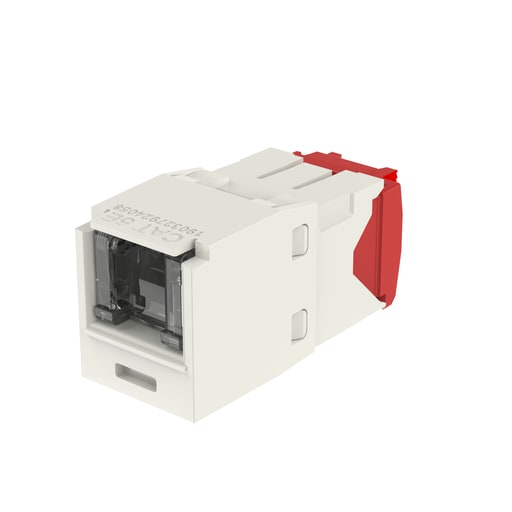

Panduit Corp - PAN CJH5E88TGIW Mini-Com® RJ45 Cat
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 613056014862
Applications - Unshielded
Buy American - Y
Catalog Number - CJH5E88TGIW
Color - Off-White
Packaging
1 ea
EAN
00613056014862
Part #
123603
Catalog #
CJH5E88TGIW
Commercial reference
CJH5E88TGIW
12-Digit UPC:
613056014862
Applications:
Unshielded
Buy American:
Y
Catalog Number:
CJH5E88TGIW
Color:
Off-White
Country of Origin:
Costa Rica
Depths:
38.1 mm
ERP_productname:
PAND CJH5E88TGIW SPRING SHUTTERED JACK,CAT5,IW,EA
Family Brand Name:
Panduit Corp.
Heights:
18.1 mm
Material:
ABS Plastic
Overall Length:
38.1 mm
Sub Brand:
PanNet
Type:
Spring Shuttered, Unshielded
Widths:
15.7 mm
SoneparProductId:
SKU_US_194548592
The Mini-Com® Cat 5e UTP RJ45 Spring-Shuttered TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. The integrated spring-shuttered door keeps dust and debris out of unmated RJ45 jack modules. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is off white. Standards and Certifications: Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Standards at Swept Frequencies 1 to 100 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant - Prop 65: No
