Panduit Corp - PAN CTAPR2/0-2/0-X StructuredGround
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 613056142916
Applications - Utility/Ground Grid
Buy American - Y
Catalog Number - CTAPR2/0-2/0-X
Country of Origin - India
Packaging
1 ea
EAN
00613056142916
Part #
285379
Catalog #
CTAPR2/0-2/0-X
Commercial reference
CTAPR2/0-2/0-X
12-Digit UPC:
613056142916
Applications:
Utility/Ground Grid
Buy American:
Y
Catalog Number:
CTAPR2/0-2/0-X
Country of Origin:
India
ERP_productname:
PAND CTAPR2/0-2/0-X STRUCTUREDGROUND? CTAPR2/0-2/0-X COMP. T
Family Brand Name:
Panduit Corp.
Heights:
1.55 Inch
Length:
0.75 Inch
Material:
Copper
Overall Length:
0.75 in
Sub Brand:
StructuredGround™
Type:
Compression Tap
Widths:
0.74 in
SoneparProductId:
SKU_US_368631715

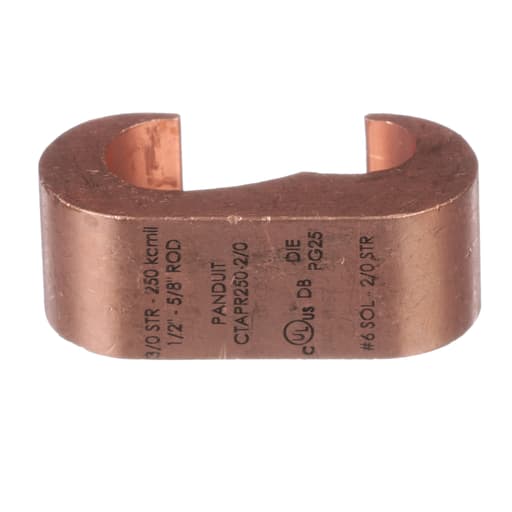

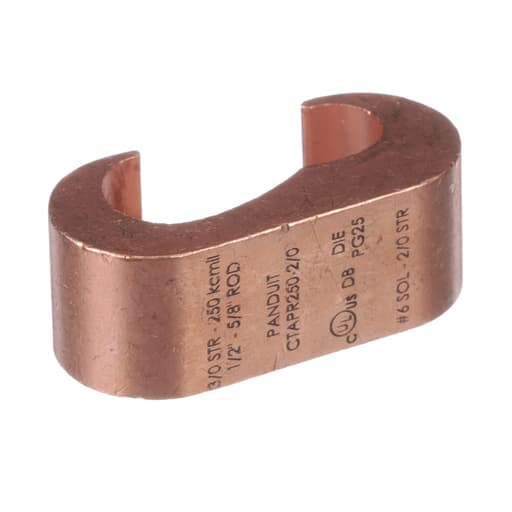

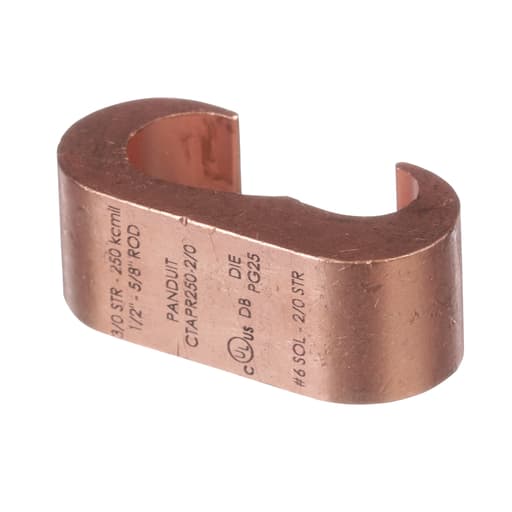

TheCTAPR2/0-2/0-X Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors. Used for tapping conductor to conductor and conductor to ground rod applications. UL listed per UL486 for use suitable for direct burial in earth and concrete. UL 486A-486B Listed for wire to wire power applications up to 36 Kv and temperature rated 90C with select Panduit or industry standard crimp tools and crimp dies. Standards and Certifications: Standards Met: cULus Listed for Direct Burial Grounding Applications to UL467 and Power Applications up to 35kV - Prop 65: Y
