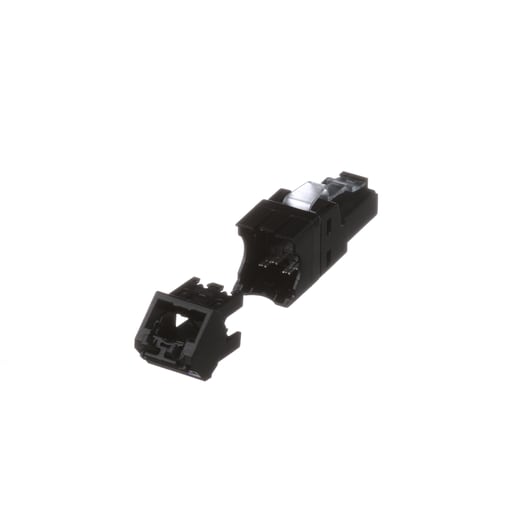

Panduit Corp - PAN FPUD6X88MTG-X TX6A Cat 6A Angle
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 613056366176
Applications - Unshielded
Buy American - Y
Catalog Number - FPUD6X88MTG-X
Color - Black
Packaging
1 ea
EAN
00613056366176
Part #
156130
Catalog #
FPUD6X88MTG-X
Commercial reference
FPUD6X88MTG-X
12-Digit UPC:
613056366176
Applications:
Unshielded
Buy American:
Y
Catalog Number:
FPUD6X88MTG-X
Color:
Black
Country of Origin:
Costa Rica
Depths:
2.09 Inch
ERP_productname:
PAND FPUD6X88MTG-X CAT6A UTP FIELD TERM RJ45 PLUG ANGLED UP/DOWN, COMPATIBLE CAT6 & CAT5E, PKG OF 10 PRICE EACH
Family Brand Name:
Panduit Corp.
Heights:
0.62 Inch
Overall Length:
2.09 in
Sub Brand:
Pan-Net®
Type:
UTP Field Term Plug
Widths:
0.53 in
SoneparProductId:
SKU_US_166528706
The TX6A Category 6A UTP Angled Up/Down RJ45 Field Term Plug terminates 4-pair, 22-26 AWG, 100 ohm, UTP twisted pair cable and is backwards compatible with Cat 6 and 5e. The angled cable exit allows a cable to route to the plug in tight spaces while maintaining proper bend radius. The plug utilizes TG style technology to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. This plug simplifies installation of common devices such as cameras. Standards and Certifications: Standards Met: Exceeds ANSI/TIA 568-C.2 Category 6A and ISO 11801 Class EA Channel performance requirements with up to two field term plugs in channel. Meets or exceeds proposed TIA Modular Plug Terminated Link requirements with up to two field term plugs in link, Meets ANSI/TIA-1096-A (formerly FCC Part 68), IEC 60603-7, IEC 60529 (IP 20), Supports IEEE 802.3af / 802.3at (PoE/PoE+) and proposed 802.3bt type 3 and type 4 (PoE++) applications. Supports Power over HDBaseT up to 100 watts, RoHS compliant
