Panduit Corp - PAN LAMA6-14-C Pan-Lug™LAMA6-14-C A
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 613056878501
Amperage - NA Amp
Applications - Stranded Aluminum or Copper Code Conductor
Buy American - Y
Catalog Number - LAMA6-14-C
Packaging
1 ea
EAN
00613056878501
Part #
363723
Catalog #
LAMA6-14-C
Commercial reference
LAMA6-14-C
12-Digit UPC:
613056878501
Amperage:
NA Amp
Applications:
Stranded Aluminum or Copper Code Conductor
Buy American:
Y
Catalog Number:
LAMA6-14-C
Country of Origin:
India
ERP_productname:
PAND LAMA6-14-C PAN-LUG?LAMA6-14-C AL MECH,6 AWG, TIN PL
Family Brand Name:
Panduit Corp.
Heights:
1/2 Inch
Material:
Aluminum
Number of Holes:
1 Hole
Overall Length:
1.06 in
Sub Brand:
Pan-Lug™
Type:
Mechanical Lug
Voltage:
600 Volt
Widths:
0.5 in
SoneparProductId:
SKU_US_451482978

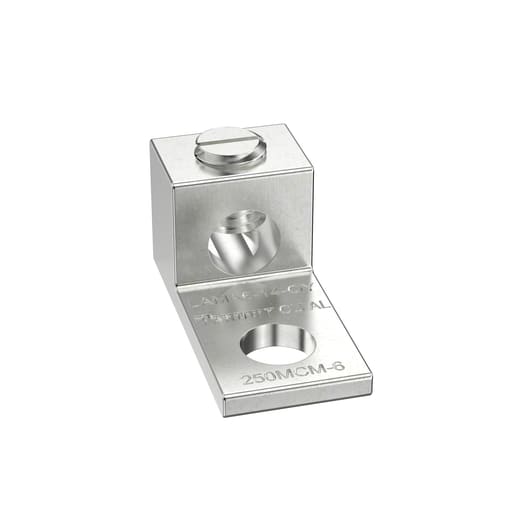

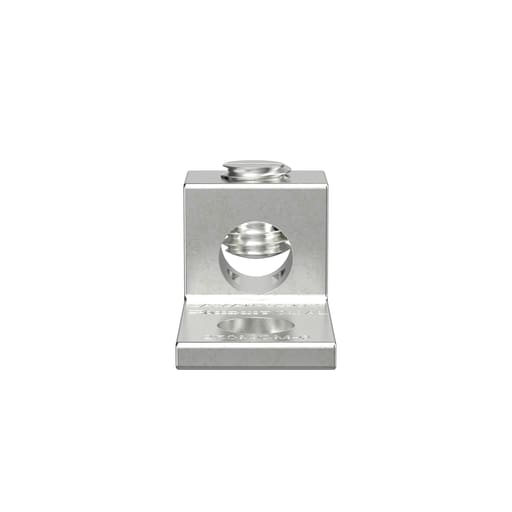

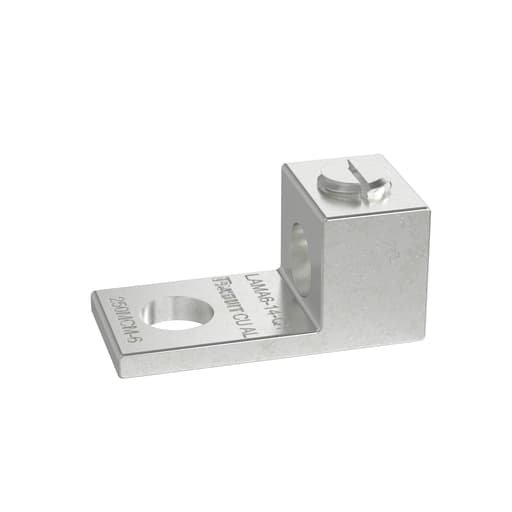

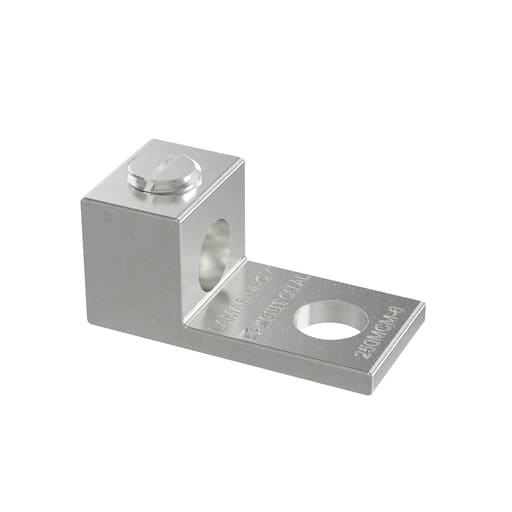

The LAMA6-14-C Tin-Plated Aluminum Mechanical Lug, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and Lug. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius. Prop 65: N - Standards and Certifications: Standards Met: cULus Listed for use up to 600V & Temperature Rated to 90±C
