Panduit Corp - PAN NK5E88MAWY NetKey Cat 5e Leadfr

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983054961

  • Applications - For 10BASE-T, 100BASE-T and 1000BASE-T Ethernet, 4/16 Token Ring, Voice Over Internet Protocol (VoIP)

  • Buy American - Y

  • Catalog Number - NK5E88MAWY

  • Color - Arctic White

Packaging

  • 1 ea

EAN

00074983054961

Part #

205882

Catalog #

NK5E88MAWY

Commercial reference

NK5E88MAWY

12-Digit UPC:

074983054961

Applications:

For 10BASE-T, 100BASE-T and 1000BASE-T Ethernet, 4/16 Token Ring, Voice Over Internet Protocol (VoIP)

Buy American:

Y

Catalog Number:

NK5E88MAWY

Color:

Arctic White

Country of Origin:

China

Depths:

1.37 Inch

ERP_productname:

PAND NK5E88MAWY NK,CAT5E,LEADFRAME,JACKMOD,AW,EA

Family Brand Name:

Panduit Corp.

Heights:

22.1 mm

Material:

ABS Plastic

Mounting Type:

Surface/Patch Panel/Faceplate

Number of Positions:

8

Overall Length:

34.8 mm

Sub Brand:

NetKey

Type:

8-Wire, Keystone, Unshielded

Widths:

16.5 mm

SoneparProductId:

SKU_US_73056505

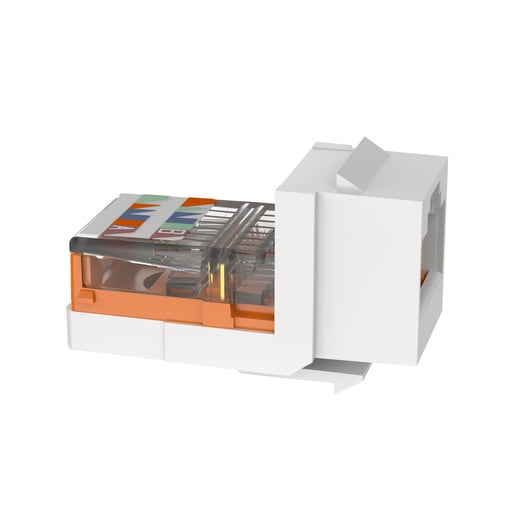

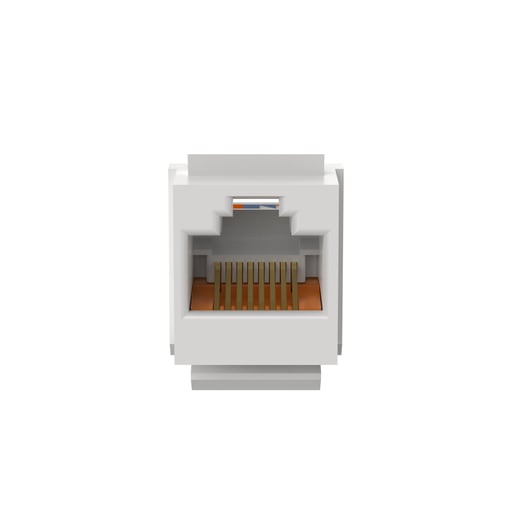

The NetKey® Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with keystone interfaces including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. This jack module is arctic white. Standards and Certifications: Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
