Panduit Corp - PAN NK6APC2BU NetKey® Cat 6A 26 AWG

CopyCopy
Panduit Corp - PAN NK6APC2BU NetKey® Cat 6A 26 AWG

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 613056368187

  • Applications - (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing.

  • Buy American - Y

  • Catalog Number - NK6APC2BU

  • Color - Blue

Packaging

  • 1 ea

EAN

00613056368187

Part #

212256

Catalog #

NK6APC2BU

Commercial reference

NK6APC2BU

12-Digit UPC:

613056368187

Applications:

(1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing.

Buy American:

Y

Catalog Number:

NK6APC2BU

Color:

Blue

Country of Origin:

China,Costa Rica,Romania

ERP_productname:

PAND NK6APC2BU NKCUPC,CAT6A,CM/LSZH,BUUTP,CBL,2FT, EA

Family Brand Name:

Panduit Corp.

Overall Length:

2 ft

Sub Brand:

NetKey®

Type:

Category 6A

SoneparProductId:

SKU_US_315801517

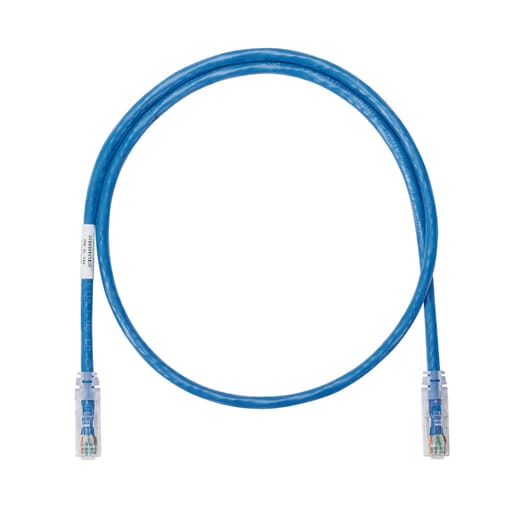

The NetKey® Cat 6A UTP Patch Cord is constructed of 26 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord.s slender strain relief boot provides easy access in high-density applications. The patch cord is 2 feet in length and blue. Standards and Certifications: Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
