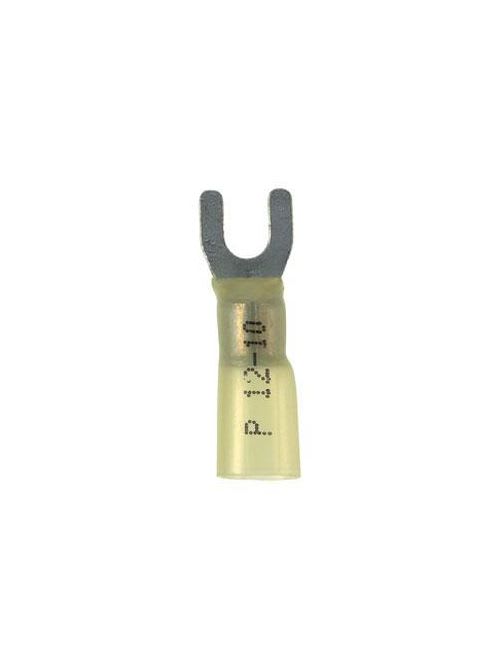

Panduit Corp - PAN PH10-8F-E Fork Term, Heat Shrin

Fork Terminal, Heat Shrink, 12 - 10 American Wire Gauge (AWG), No. 8 Stud Size. Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for high moisture applications, Fork design provides for fast and easy installation, without the need to remove fastener. Brazed seam protects terminal barrel from splitting during the crimp process. Heat shrink insulation is completed with a standard heat gun. Minimum continuous operating temperature -65 degrees Fahrenheit (-55 degrees Celsius). Maximum continuous operation temperature 230 degrees Fahrenheit (110 degrees Celsius). Shrink temperature 300 degrees Fahrenheit (150 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486A/B. Standard Package.
