Panduit Corp - PAN PV18-8LFB-3K Reel Smart™ PV18-8
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983808434
Buy American - Y
Catalog Number - PV18-8LFB-3K
Color - Red
Conductor Size - 18 AWG
Packaging
1 ea
EAN
00074983808434
Part #
181458
Catalog #
PV18-8LFB-3K
Commercial reference
PV18-8LFB-3K
12-Digit UPC:
074983808434
Buy American:
Y
Catalog Number:
PV18-8LFB-3K
Color:
Red
Conductor Size:
18 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PV18-8LFB-3K PANDUIT PV18-8LFB-3K LOCKING FORK TERMIN
Enclosure:
Fork shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
0.87 in
Size:
#8
Sub Brand:
Reel Smart™
Tc Connection:
Funnel Entry
Type:
Locking Fork Terminal
Voltage:
600 Volt
Widths:
0.29 in
Wire Size:
18 AWG
SoneparProductId:
SKU_US_181767801

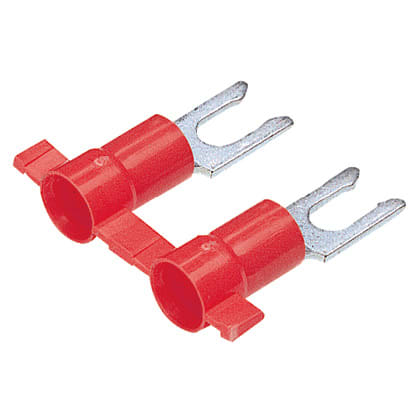

The PV18-8LFB-3K Reel Smart™ Terminal is a continuously molded and vinyl fully insulated, locking fork terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Standards and Certifications: Standards Met: UL Listed 587H E52164; CSA Certified LR31212
