Panduit Corp - PAN STP6X3MRD Cat 6A 26 AWG Shielde

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983711420

  • Applications - 1) Stacking switched and switch-to-switch links 2) Aggregation of Gigabit Ethernet channels 3) Streaming video 4) Scientific modeling 5) Storage area networks 6) Real-time intensive financial transactions 7) Animation 8) Medical imaging

  • Buy American - Y

  • Catalog Number - STP6X3MRD

  • Color - Red

Packaging

  • 1 ea

EAN

00074983711420

Part #

168664

Catalog #

STP6X3MRD

Commercial reference

STP6X3MRD

12-Digit UPC:

074983711420

Applications:

1) Stacking switched and switch-to-switch links 2) Aggregation of Gigabit Ethernet channels 3) Streaming video 4) Scientific modeling 5) Storage area networks 6) Real-time intensive financial transactions 7) Animation 8) Medical imaging

Buy American:

Y

Catalog Number:

STP6X3MRD

Color:

Red

Conductor Material:

Copper

Country of Origin:

China,Mexico,Romania

ERP_productname:

PAND STP6X3MRD CAT 6A 26 AWG SHIELDED PATCH CORD, 3 M,

Family Brand Name:

Panduit Corp.

Length:

9.84 Inch

Material:

Copper

Overall Length:

3 m

Sub Brand:

PanNet

Type:

Category 6A

Wire Size:

26 AWG

SoneparProductId:

SKU_US_316012738

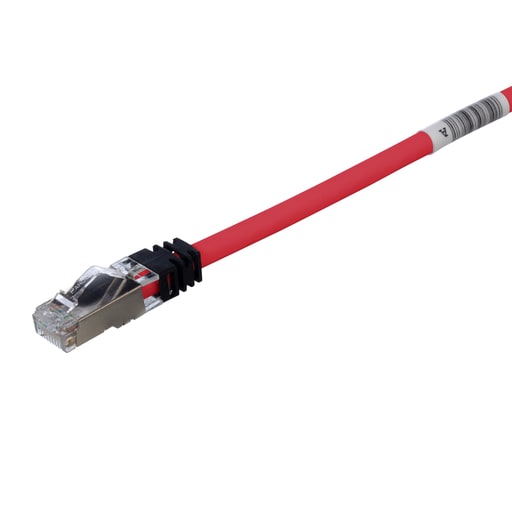

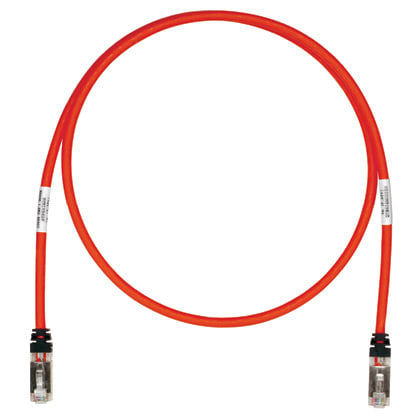

The TX6A™ Cat 6A Shielded Patch Cord is constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord.s slender strain relief boot provides easy access in high-density applications. The patch cord is 3 meters in length and red. Standards and Certifications: Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
