Panduit Corp - PAN UTP28CH1M Cat 5e 28 AWG UTP Cop

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983433377

  • Applications - (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP)

  • Buy American - Y

  • Catalog Number - UTP28CH1M

  • Color - Off-White

Packaging

  • 1 ea

EAN

00074983433377

Part #

148199

Catalog #

UTP28CH1M

Commercial reference

UTP28CH1M

12-Digit UPC:

074983433377

Applications:

(1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP)

Buy American:

Y

Catalog Number:

UTP28CH1M

Color:

Off-White

Conductor Material:

Copper

Country of Origin:

China,Mexico,Romania

ERP_productname:

PAND UTP28CH1M CU,PATCH CORD,CAT 5E,SD,1FT,IW

Family Brand Name:

Panduit Corp.

Length:

3.28 Inch

Overall Length:

1 m

Sub Brand:

PanNet

Type:

Category 5e, Small Diameter

Wire Size:

28 AWG

SoneparProductId:

SKU_US_315960299

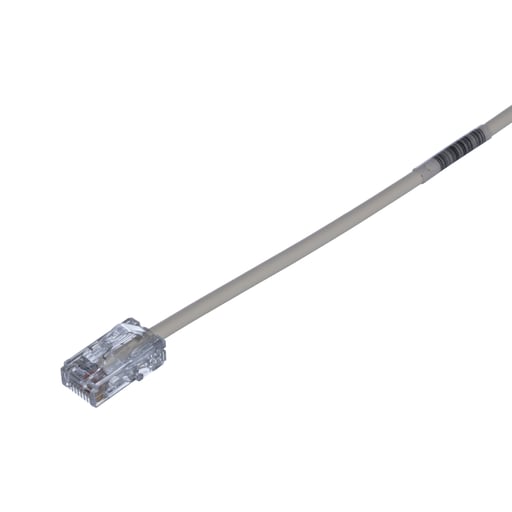

The TX5e™ Cat 5e UTP Patch Cord is constructed of 28 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug™ modular plugs on each end. The use of 28 AWG cable ensures that this patch cord has a small diameter, making it easy to install and work with. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 1 meter in length and off white. Standards and Certifications: Standards Met: Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
