Panduit Corp - PAN UTP28SP5MBU Cat 6 28 AWG UTP Co
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983657766
Buy American - Y
Catalog Number - UTP28SP5MBU
Color - Olive, Orange, Royal Blue and Yellow
Conductor Material - Copper
Packaging
1 ea
EAN
00074983657766
Part #
222617
Catalog #
UTP28SP5MBU
Commercial reference
UTP28SP5MBU
12-Digit UPC:
074983657766
Buy American:
Y
Catalog Number:
UTP28SP5MBU
Color:
Olive, Orange, Royal Blue and Yellow
Conductor Material:
Copper
Conductor Size:
28 AWG
Country of Origin:
China,Mexico,Romania
ERP_productname:
PAND UTP28SP5MBU CAT6 UTP 28AWG SMALL DIAMETER PATCH CORD 5-METERS BLUE
Family Brand Name:
Panduit Corp.
Length:
16.41 Foot
Overall Length:
5 m
Sub Brand:
PanNet
Type:
Preterminated Copper Trunk, Category 6
Wire Size:
28 ft
SoneparProductId:
SKU_US_194548400

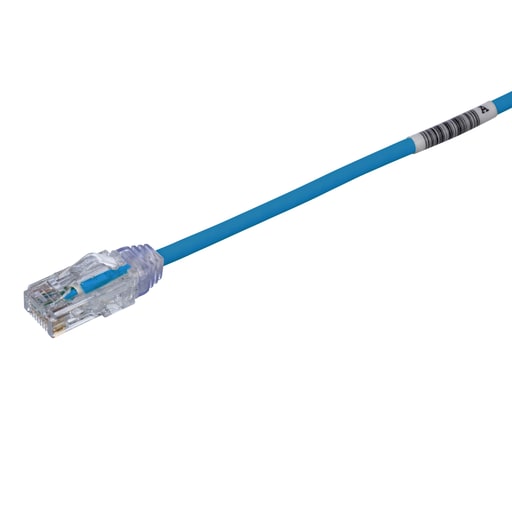

The TX6-28™ Cat 6 UTP Patch Cord is constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with enhanced performance modular plugs. The use of 28 AWG cable ensures that this patch cord has a small diameter, making it easy to install and work with. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 5 meters in length, 0.150 inches (3.8mm) nominal in diameter, and blue. Standards and Certifications: Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant - Prop 65: No
