Panduit Corp - PAN UTP28X1.5MBU Cat 6A 28 AWG UTP

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983014262

  • Applications - 10GBASE-T Ethernet, Data Center I/O Consolidation, Data Center Server Virtualization, Backbone Aggregation, Parallel Processing and High Speed Computing

  • Buy American - Y

  • Catalog Number - UTP28X15MBU

  • Color - Blue

Packaging

  • 1 ea

EAN

00074983129430

Part #

125324

Catalog #

UTP28X15MBU

Commercial reference

UTP28X15MBU

12-Digit UPC:

074983014262

Applications:

10GBASE-T Ethernet, Data Center I/O Consolidation, Data Center Server Virtualization, Backbone Aggregation, Parallel Processing and High Speed Computing

Buy American:

Y

Catalog Number:

UTP28X15MBU

Color:

Blue

Conductor Material:

Copper

Conductor Size:

28 AWG

Country of Origin:

China,Mexico,Romania

ERP_productname:

PAND UTP28X15MBU CAT6A,28AWG,UTP,PC,CM/LSZH,BU,15M,E A

Family Brand Name:

Panduit Corp.

Length:

4.92 Inch

Material:

Copper

Overall Length:

1.5 m

Sub Brand:

PanNet

Type:

Category 6A

Wire Size:

28 AWG

SoneparProductId:

SKU_US_194548101

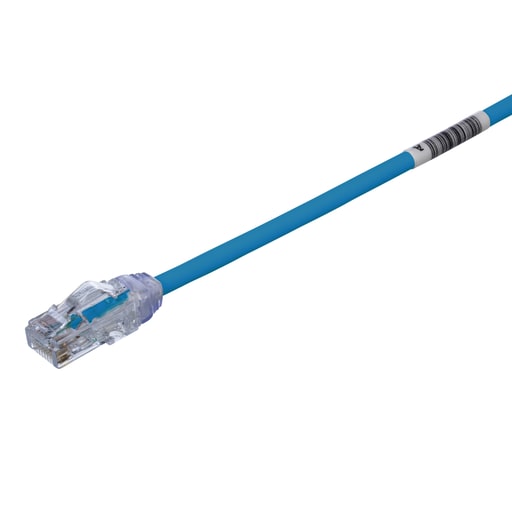

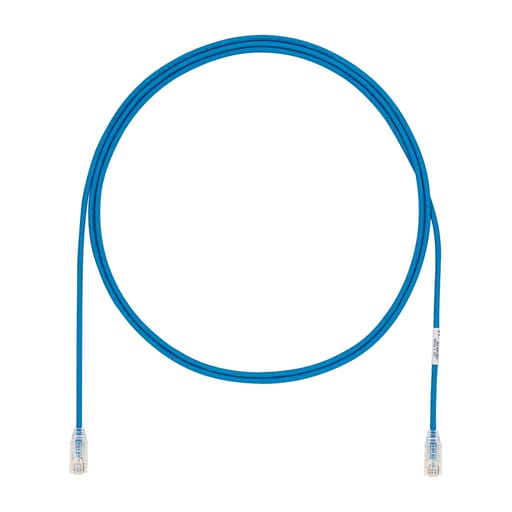

The TX6A-28™ Cat 6A UTP Patch Cord is constructed of 28 AWG, unshielded, twisted pair, solid, CM/LSZH cable with enhanced performance modular plugs. The use of 28 AWG cable ensures that this patch cord has a small diameter, making it easy to install and work with. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 1.5 meters in length, 0.185 inches (4.7mm) nominal in diameter, and blue. Standards and Certifications: Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant
