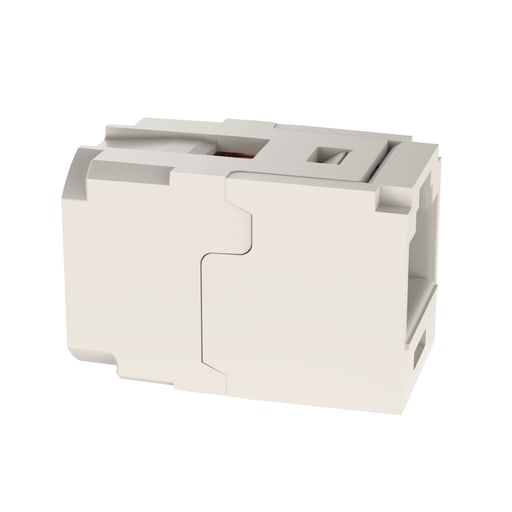

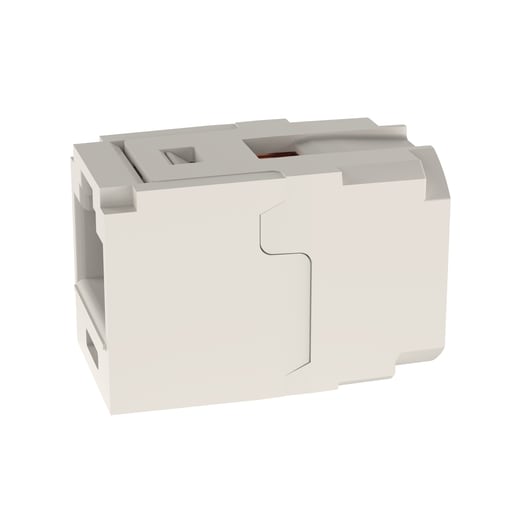

Panduit Corp - Panduit CC688IW Mini-Com® Cat 6 UTP RJ4

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983017829

  • Applications - For Digital Video and Broadband/Baseband Analog Video, Voice over Internet Protocol (VoIP)

  • Buy American - Y

  • Catalog Number - CC688IW

  • Color - Off White

Packaging

  • 1 ea

EAN

00074983017829

Part #

184440

Catalog #

CC688IW

Commercial reference

CC688IW

12-Digit UPC:

074983017829

Applications:

For Digital Video and Broadband/Baseband Analog Video, Voice over Internet Protocol (VoIP)

Buy American:

Y

Catalog Number:

CC688IW

Color:

Off White

Country of Origin:

Mexico

Depths:

1.09 Inch

ERP_productname:

PAND CC688IW MINI-COM COUPLER MODULE, CAT 6, UTP, OFF

Family Brand Name:

Panduit Corp.

Heights:

0.71 Inch

Material:

ABS Plastic

Number of Positions:

8

Overall Length:

1.09 in

Sub Brand:

Mini-Com

Type:

RJ45, Universal, 1 Port, 8 Wire

Widths:

0.62 in

SoneparProductId:

SKU_US_31224984

The Mini-Com® Cat 6 UTP RJ45 Coupler Module is designed and 100% factory tested to allow for up to two couplers to be used and meet channel performance requirements. Contacts are plated with 50 microinches of gold for superior performance. The coupler module is compatible with Mini-Com Modular Patch Panels and Faceplates. The coupler is off white. Standards and Certifications: Standards Met: Exceeds Channel Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category with up to 2 couplers per channel, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
