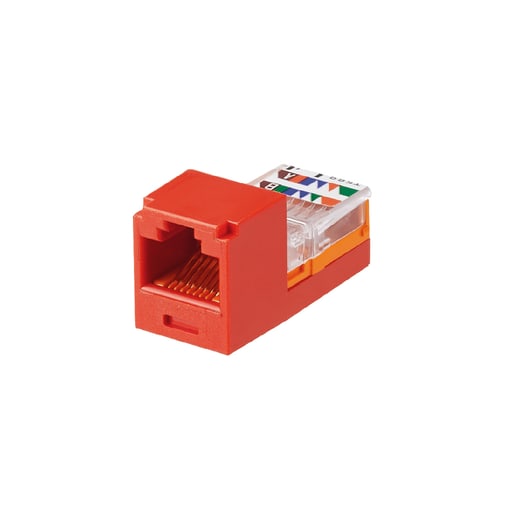

Panduit Corp - Panduit CJ588RDY UTP RJ45 Cat 5e Leadframe Jack Module, Red
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983035045
Applications - Unshielded
Buy American - Y
Catalog Number - CJ588RDY
Color - Red
Packaging
1 ea
EAN
00074983035045
Part #
171903
Catalog #
CJ588RDY
Commercial reference
CJ588RDY
12-Digit UPC:
074983035045
Applications:
Unshielded
Buy American:
Y
Catalog Number:
CJ588RDY
Color:
Red
Country of Origin:
China
Depths:
1.37 Inch
ERP_productname:
PAND CJ588RDY MINI-COM UTP RJ45 CAT 5E LEADFRAME JACK
Family Brand Name:
Panduit Corp.
Heights:
0.72 Inch
Material:
ABS Plastic
Number of Positions:
8
Overall Length:
1.37 in
Sub Brand:
Mini-Com
Type:
Universal, Bus Jack
Widths:
15.7 mm
SoneparProductId:
SKU_US_29669466
The Mini-Com® Cat 5e UTP RJ45 Leadframe Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Red. Standards and Certifications: Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
