Panduit Corp - Panduit CJ5E88TGBU-24 UTP RJ45 Cat 5e TG Jack Module, Blackue, 24 Pack
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983011018
Applications - Unshielded
Buy American - Y
Catalog Number - CJ5E88TGBU-24
Color - Blue
Packaging
1 ea
EAN
00074983011018
Part #
143501
Catalog #
CJ5E88TGBU-24
Commercial reference
CJ5E88TGBU-24
12-Digit UPC:
074983011018
Applications:
Unshielded
Buy American:
Y
Catalog Number:
CJ5E88TGBU-24
Color:
Blue
Country of Origin:
Costa Rica
Depths:
1-1/2 Inch
ERP_productname:
PAND CJ5E88TGBU-24 CAT5E UTP JACK MODULE, BLUE, PKG OF 24 PRICE EACH
Family Brand Name:
Panduit Corp.
Heights:
0.71 Inch
Material:
ABS Plastic
Number of Positions:
8
Overall Length:
1.5 in
Sub Brand:
Mini-Com, PanNet
Type:
Unshielded
Widths:
15.7 mm
SoneparProductId:
SKU_US_31489128

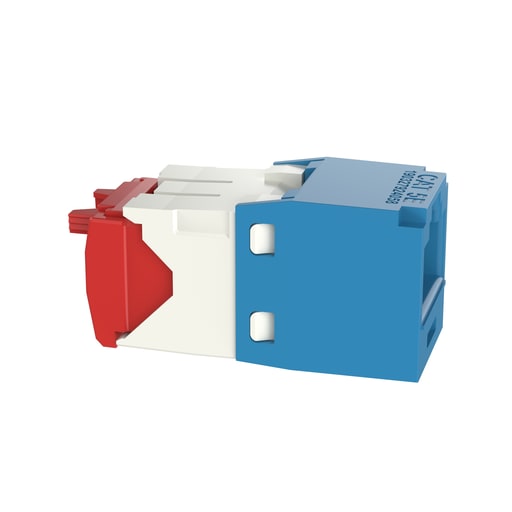

The Mini-Com® Cat 5e UTP RJ45 TG-Style Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Blue. Standards and Certifications: Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
