Essential specifications
12-Digit UPC - 074983395286
Applications - Unshielded
Buy American - Y
Catalog Number - CJ5E88TGIW
Color - Off-White
Packaging
1 ea
EAN
00074983395286
Part #
139615
Catalog #
CJ5E88TGIW
Commercial reference
CJ5E88TGIW
12-Digit UPC:
074983395286
Applications:
Unshielded
Buy American:
Y
Catalog Number:
CJ5E88TGIW
Color:
Off-White
Country of Origin:
Costa Rica
Depths:
38.1 mm
ERP_productname:
PAND CJ5E88TGIW CAT5E JACK MODULE OFF WHITE
Family Brand Name:
Panduit Corp.
Heights:
0.71 Inch
Material:
ABS Plastic
Number of Positions:
8
Overall Length:
1.5 in
Sub Brand:
Mini-Com
Type:
Bus Jack, Unshielded, 8-Wire
Widths:
15.7 mm
SoneparProductId:
SKU_US_29477046

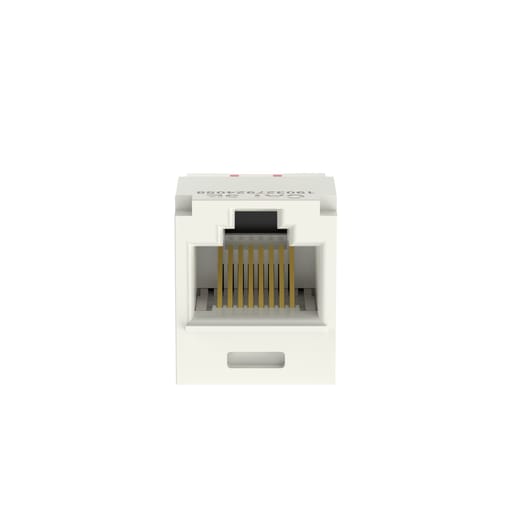

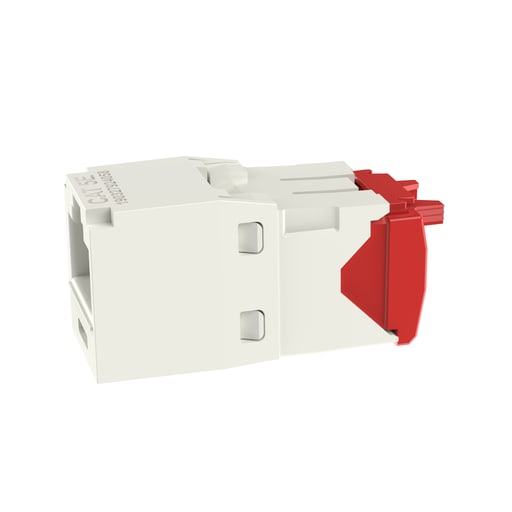

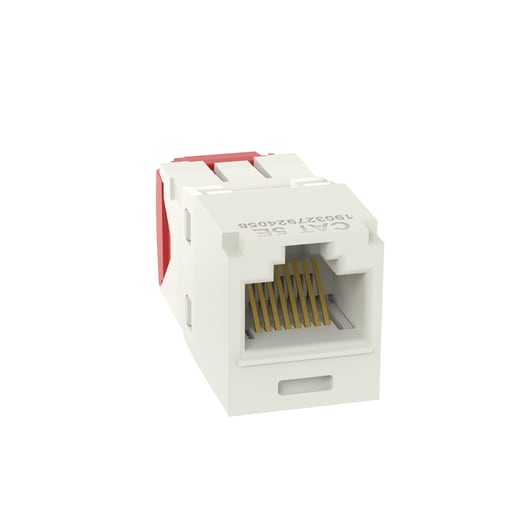

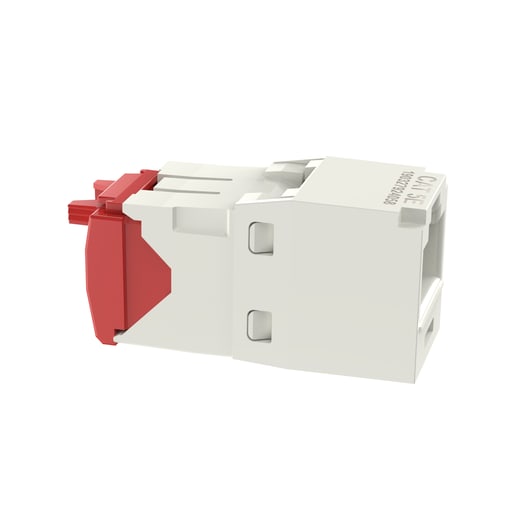

The Mini-Com® Cat 5e UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is off white. Standards and Certifications: Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Standards at Swept Frequencies 1 to 100 MHz. Meets ANSI/TIA-1096-A, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and proposed 802.3bt Type 3 and Type 4, Meets IEC 60603-7, UL 1863 and UL 2043, and RoHS Compliant
