Panduit Corp - Panduit CJ688TGOR Mini-Com® UTP RJ45 Ca
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983395514
Applications - Unshielded
Buy American - Y
Catalog Number - CJ688TGOR
Color - Orange
Packaging
1 ea
EAN
00074983395514
Part #
140177
Catalog #
CJ688TGOR
Commercial reference
CJ688TGOR
12-Digit UPC:
074983395514
Applications:
Unshielded
Buy American:
Y
Catalog Number:
CJ688TGOR
Color:
Orange
Country of Origin:
Costa Rica
Depths:
1-1/2 Inch
ERP_productname:
PAND CJ688TGOR CAT6 UTP JACK MODULE ORANGE
Family Brand Name:
Panduit Corp.
Heights:
0.71 Inch
Material:
ABS Plastic
Number of Positions:
8
Overall Length:
38.1 mm
Sub Brand:
Mini-Com
Type:
RJ45, Unshielded, Universal
Widths:
15.7 mm
SoneparProductId:
SKU_US_30010300

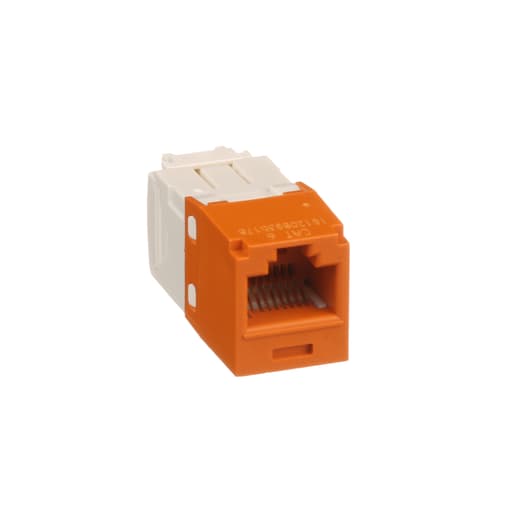

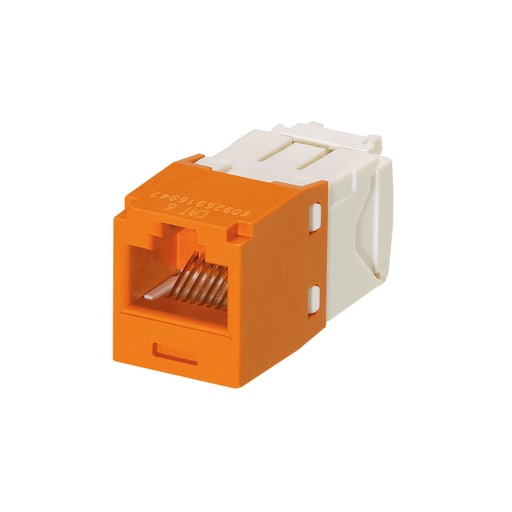

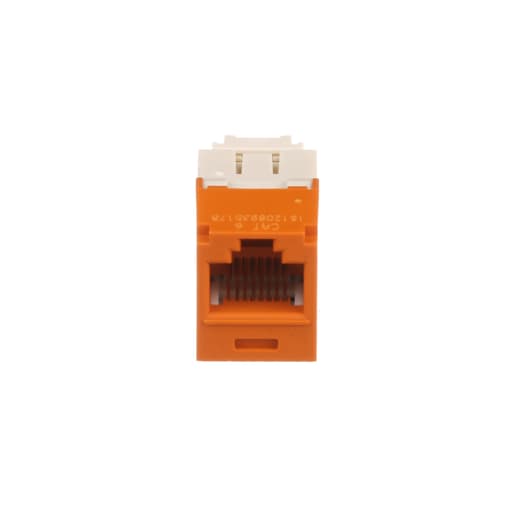

The Mini-Com® Cat 6 UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is orange. Standards and Certifications: Standards Met: Exceeds component and channel requirements of ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards at swept frequencies 1 to 250 MHz for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 250 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Standards at Swept frequencies 1 to 250 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Compliant
