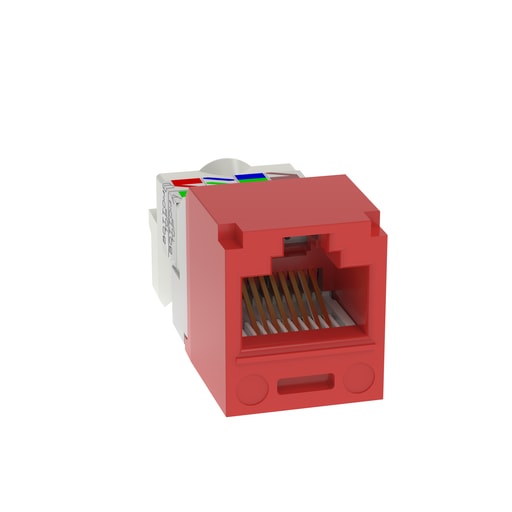

Panduit Corp - Panduit CJ688TPRD UTP RJ45 Cat 6 TP-Style Jack Module, Red
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983992720
Applications - Unshielded
Buy American - Y
Catalog Number - CJ688TPRD
Color - Red
Packaging
1 ea
EAN
00074983992720
Part #
108508
Catalog #
CJ688TPRD
Commercial reference
CJ688TPRD
12-Digit UPC:
074983992720
Applications:
Unshielded
Buy American:
Y
Catalog Number:
CJ688TPRD
Color:
Red
Country of Origin:
USA
Depths:
1.43 Inch
ERP_productname:
PAND CJ688TPRD MINI CAT6 JACK RED
Family Brand Name:
Panduit Corp.
Heights:
0.63 Inch
Material:
ABS Plastic
Number of Positions:
8
Overall Length:
1.43 in
Sub Brand:
Mini-Com
Type:
Universal, Unshielded
Widths:
16 mm
SoneparProductId:
SKU_US_29548399
The Mini-Com® Cat 6 UTP RJ45 TP Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. Standards and Certifications: Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
