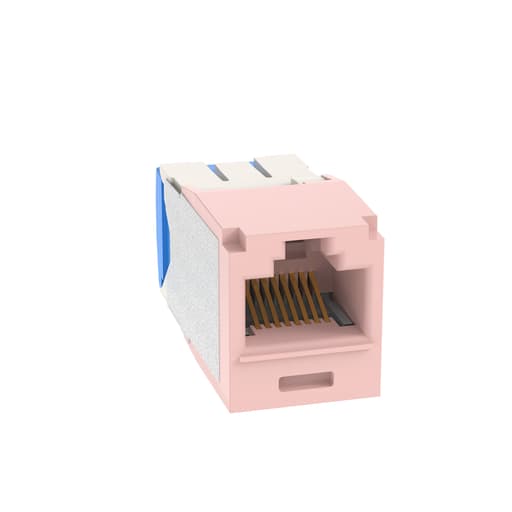

Panduit Corp - Panduit CJ6X88TGPK UTP RJ45 Cat 6A TG Jack Module, Pink
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983932085
Applications - Unshielded
Buy American - Y
Catalog Number - CJ6X88TGPK
Color - Pink
Packaging
1 ea
EAN
00074983932085
Part #
123956
Catalog #
CJ6X88TGPK
Commercial reference
CJ6X88TGPK
12-Digit UPC:
074983932085
Applications:
Unshielded
Buy American:
Y
Catalog Number:
CJ6X88TGPK
Color:
Pink
Country of Origin:
USA
Depths:
1-1/2 Inch
ERP_productname:
PAND CJ6X88TGPK MODULE,CAT6A,UTP,8P/8W,UNVI,PK
Family Brand Name:
Panduit Corp.
Heights:
0.71 Inch
Material:
ABS Plastic
Number of Positions:
8
Overall Length:
1.5 in
Sub Brand:
Mini-Com, TX6A™
Type:
Unshielded, 8-Wire, RJ45, Universal
Widths:
16 mm
SoneparProductId:
SKU_US_194549163
The Mini-Com® Cat 6A UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. Standards and Certifications: Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
