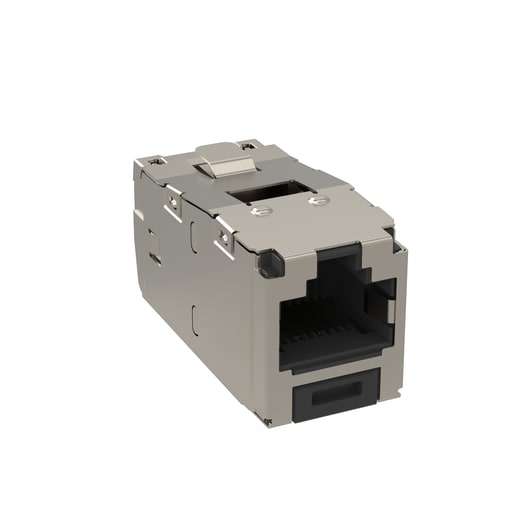

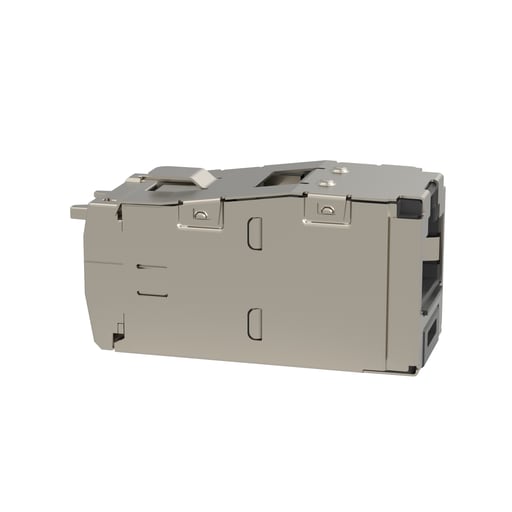

Panduit Corp - Panduit CJS688TGY-24 Shielded RJ45 Cat 6 TG Jack Module, Black
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983010738
Applications - Unshielded
Buy American - Y
Catalog Number - CJS688TGY-24
Color - Black
Packaging
1 ea
EAN
00074983010738
Part #
195360
Catalog #
CJS688TGY-24
Commercial reference
CJS688TGY-24
12-Digit UPC:
074983010738
Applications:
Unshielded
Buy American:
Y
Catalog Number:
CJS688TGY-24
Color:
Black
Country of Origin:
Costa Rica
Depths:
1-1/2 Inch
ERP_productname:
PAND CJS688TGY-24 CAT6 SHIELDED JACK MODULE, PKG OF 24 PRICE EACH
Family Brand Name:
Panduit Corp.
Heights:
0.73 Inch
Material:
ABS Plastic
Number of Positions:
8
Overall Length:
38.1 mm
Sub Brand:
Mini-Com
Type:
8-Wire, Shielded
Widths:
15.7 mm
SoneparProductId:
SKU_US_89586351
The Mini-Com® Cat 6 Shielded RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Shielded Modular Patch Panels and Faceplates. The jack module is black and includes 24 per package. Standards and Certifications: Standards Met: Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz, Complies with ANSI/TIA-1096A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4 for up to 100W, UL 1863, UL 1863, UL 2043 and RoHS Compliant
