Essential specifications
12-Digit UPC - 074983821303
Amperage - 8-4/0
Applications - Utility/Ground Grid
Buy American - Y
Catalog Number - CTAP2/0-2-X
Packaging
1 ea
EAN
00074983821303
Part #
190606
Catalog #
CTAP2/0-2X
Commercial reference
CTAP2/0-2X
12-Digit UPC:
074983821303
Amperage:
8-4/0
Applications:
Utility/Ground Grid
Buy American:
Y
Catalog Number:
CTAP2/0-2-X
Color:
Copper
Conductor Size:
2-1/0 AWG
Country of Origin:
Mexico
ERP_productname:
PAND CTAP2/0-2X C TAP
Family Brand Name:
Panduit Corp.
Heights:
1.32 Inch
Material:
Copper
Mounting Type:
Direct Burial
Overall Length:
0.8 in
Sub Brand:
StructuredGround™
Type:
Compression Tap
Voltage:
Up-35kV
Widths:
0.93 in
SoneparProductId:
SKU_US_29568321

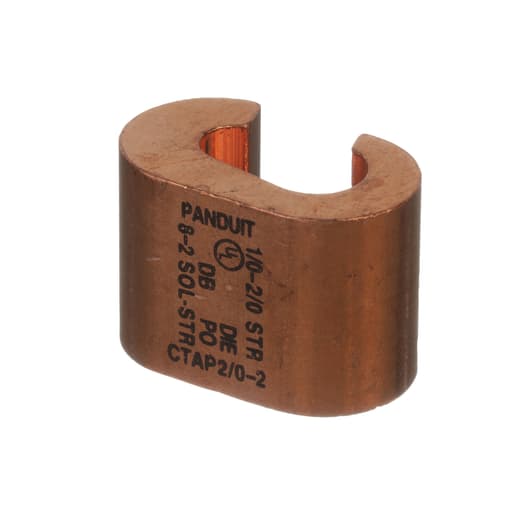

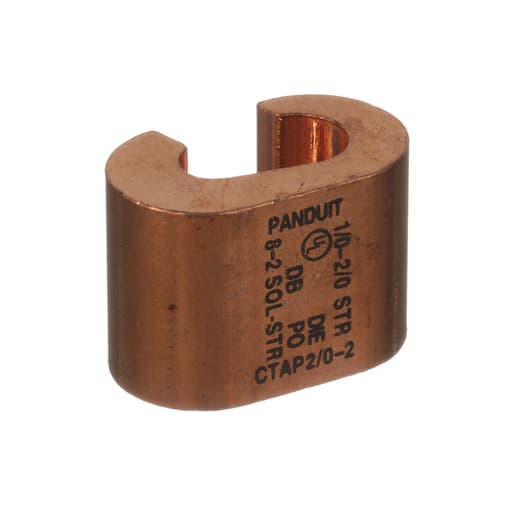

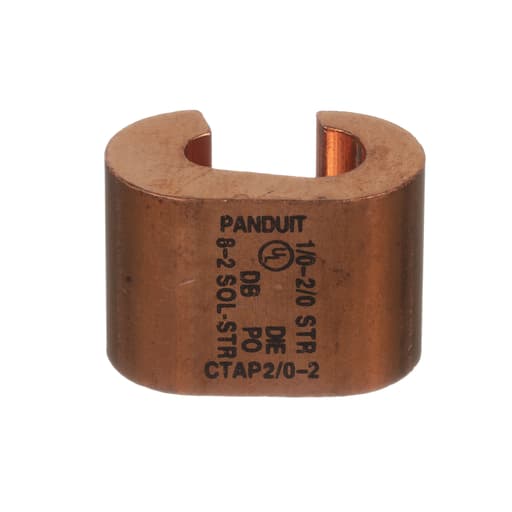

The CTAP2/0-2-X Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inventory requirements. UL listed per ul 486 for use up to 35 kv and temperature rated 90.c when crimped with Panduit and specified competitor crimping tools and dies. Standards and Certifications: Standards Met: UL 467 listed for Grounding and Bonding and UL 486A for electrical connections up to 35kV.
