Panduit Corp - Panduit CTAP4/0-4/0-X Heavy Duty 3/0-4/0 AWG STR Copper Compression C-Tap

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983911219

  • Amperage - 8-4/0

  • Applications - Utility/Ground Grid

  • Buy American - Y

  • Catalog Number - CTAP4/0-4/0-X

Packaging

  • 1 ea

EAN

00074983911219

Part #

130305

Catalog #

CTAP4/0-4/0-X

Commercial reference

CTAP4/0-4/0-X

12-Digit UPC:

074983911219

Amperage:

8-4/0

Applications:

Utility/Ground Grid

Buy American:

Y

Catalog Number:

CTAP4/0-4/0-X

Color:

Copper

Conductor Size:

3/0-4/0 AWG

Country of Origin:

Mexico

ERP_productname:

PAND CTAP4/0-4/0-X COPPER COMPRESSION CTAP'S, HEAVY DUTY, 3

Family Brand Name:

Panduit Corp.

Heights:

1.57 Inch

Length:

1 Inch

Material:

Copper

Mounting Type:

Direct Burial

Overall Length:

1 in

Sub Brand:

StructuredGround™

Type:

Compression Tap

Voltage:

35000 Volt

Widths:

1.08 in

SoneparProductId:

SKU_US_27158637

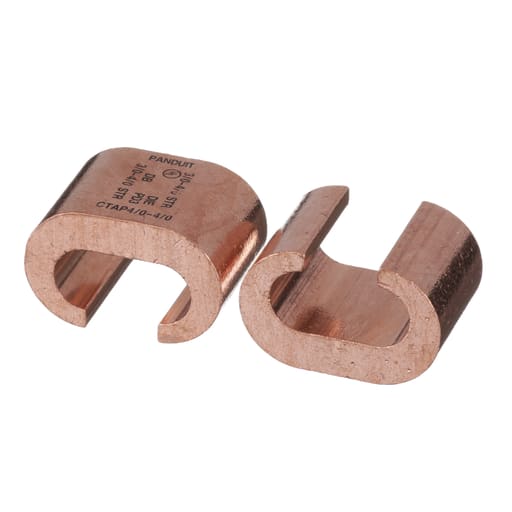

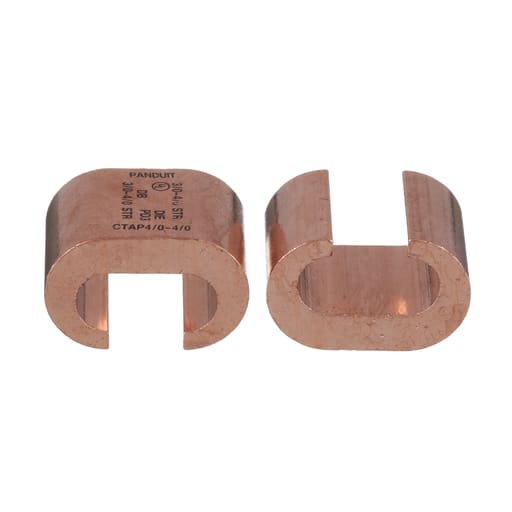

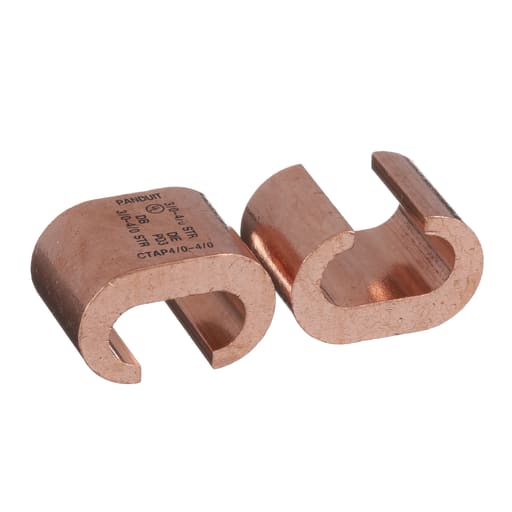

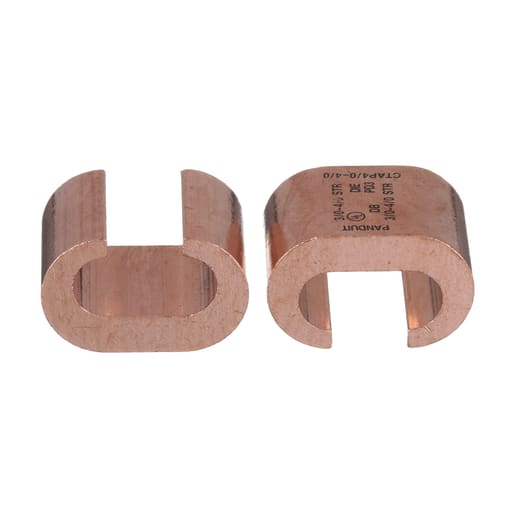

The CTAP4/0-4/0-X Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inventory requirements. UL listed per UL 486 for use up to 35 kv and temperature rated 90.. Also, UL listed per UL 467 for grounding and bonding suitable for direct burial. Prop 65: No - Standards and Certifications: Standards Met: UL 467 listed for Grounding and Bonding and UL 486A for electrical connections up to 35kV.
