Panduit Corp - Panduit CTAPF1/0-12-L Comp. Tap, 1/0-12, Copper, PK50
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983599776
Amperage - 2-1/0
Applications - Utility/Ground Grid
Buy American - Y
Catalog Number - CTAPF1/0-12-L
Packaging
1 ea
EAN
00074983599776
Part #
109581
Catalog #
CTAPF1/0-12-L
Commercial reference
CTAPF1/0-12-L
12-Digit UPC:
074983599776
Amperage:
2-1/0
Applications:
Utility/Ground Grid
Buy American:
Y
Catalog Number:
CTAPF1/0-12-L
Color:
Brown
Conductor Size:
2-1/0 AWG
Country of Origin:
Mexico
ERP_productname:
PAND CTAPF1/0-12-L COPPER COMPRESSION CTAP'S, THIN WALL, #2
Family Brand Name:
Panduit Corp.
Length:
1.82 Inch
Material:
Copper
Overall Length:
1.82 in
Sub Brand:
StructuredGround™
Type:
Compression Tap
Widths:
0.63 in
SoneparProductId:
SKU_US_29951554

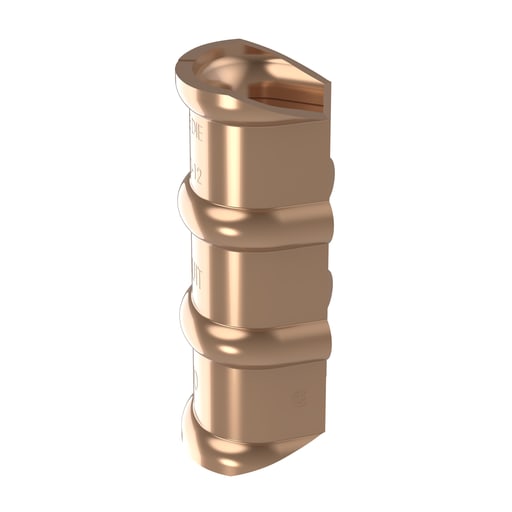

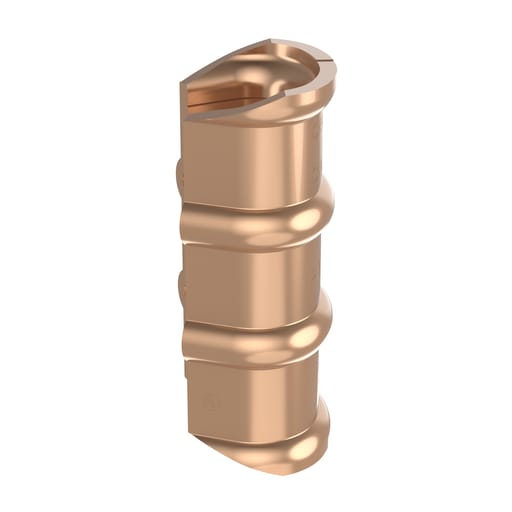

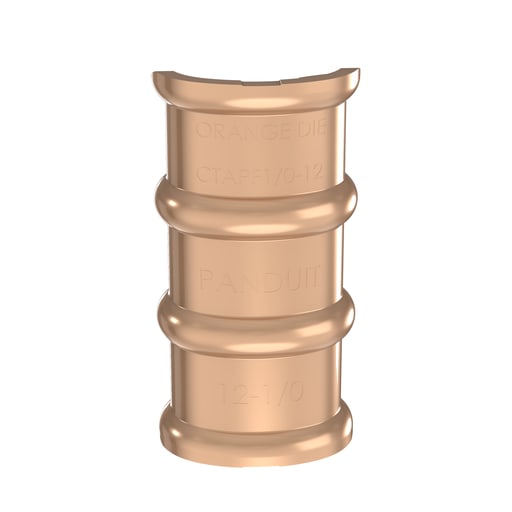

The CTAPF1/0-12-L Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inventory requirements. UL listed per UL486 for use up to 35 kv and temperature rated 90.c when crimped with Panduit and specified competitor crimping tools and dies. Standards and Certifications: Standards Met: UL listed and CSA certified to 600 V - Prop 65: No
