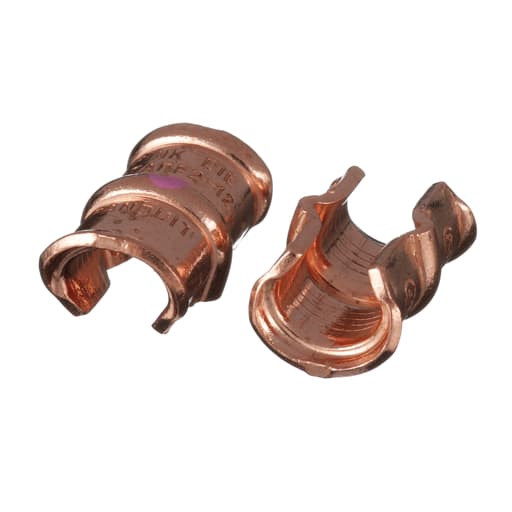

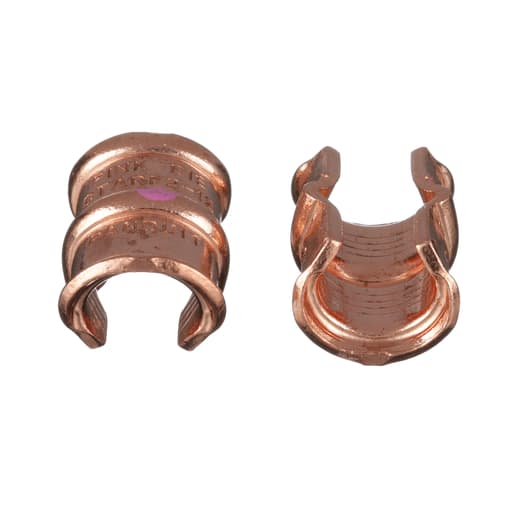

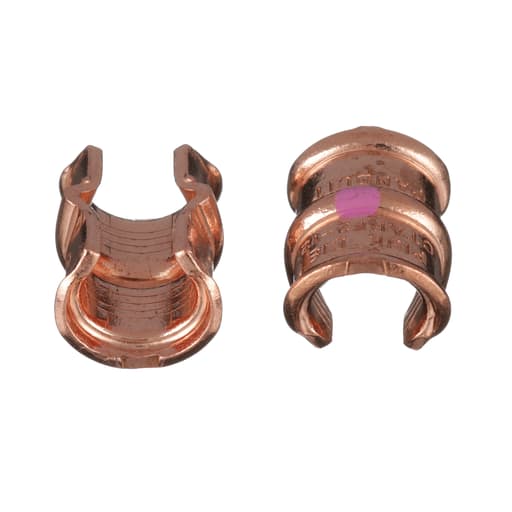

Panduit Corp - Panduit CTAPF2-12-C Compression Tap, 2-12, Copper, PK100
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983599752
Amperage - 4-2
Applications - Utility/Ground Grid
Buy American - Y
Catalog Number - CTAPF2-12-C
Packaging
1 ea
EAN
00074983599752
Part #
358327
Catalog #
CTAPF2-12-C
Commercial reference
CTAPF2-12-C
12-Digit UPC:
074983599752
Amperage:
4-2
Applications:
Utility/Ground Grid
Buy American:
Y
Catalog Number:
CTAPF2-12-C
Color:
Brown
Conductor Size:
4-2 AWG
Country of Origin:
Mexico
ERP_productname:
PAND CTAPF2-12-C STRUCTUREDGROUND? CTAPF2-12-C COMP. TAP,
Family Brand Name:
Panduit Corp.
Length:
1-1/4 Inch
Material:
Copper
Overall Length:
1.25 in
Sub Brand:
StructuredGround™
Type:
Compression Tap
Widths:
1.25 in
SoneparProductId:
SKU_US_29951630
The CTAPF2-12-C Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inventory requirements. UL listed per UL486 for use up to 35 kv and temperature rated 90.c when crimped with Panduit and specified competitor crimping tools and dies. Prop 65: No - Standards and Certifications: Standards Met: UL listed and CSA certified to 600 V
