Panduit Corp - Panduit D14-250-C 16-14 AWG Non-Insulated Female Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983822027
Buy American - Y
Catalog Number - D14-250-C
Conductor Size - 14 AWG
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983822027
Part #
107804
Catalog #
D14-250-C
Commercial reference
D14-250-C
12-Digit UPC:
074983822027
Buy American:
Y
Catalog Number:
D14-250-C
Conductor Size:
14 AWG
Country of Origin:
Mexico
ERP_productname:
PAND D14-250-C FEMALE DISCONNECT, NON-INSULATED, 16 - 1
Family Brand Name:
Panduit Corp.
Finish:
Tinned
Heights:
0.12 Inch
Material:
Brass
Overall Length:
0.66 in
Sub Brand:
Pan-Term®
Tc Connection:
Standard
Type:
Disconnect
Voltage:
2,000 Volt
Widths:
0.3 in
Wire Size:
14 AWG
SoneparProductId:
SKU_US_25572703

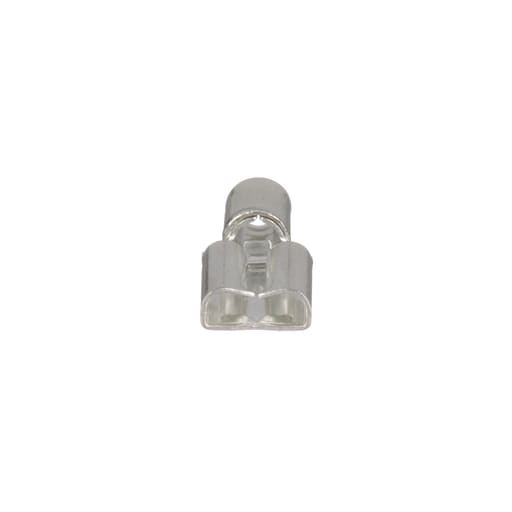

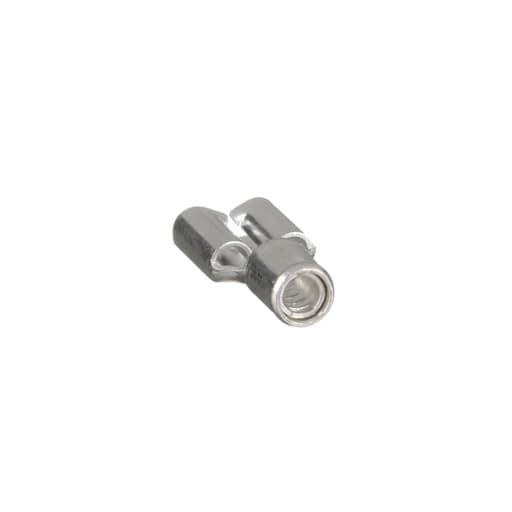

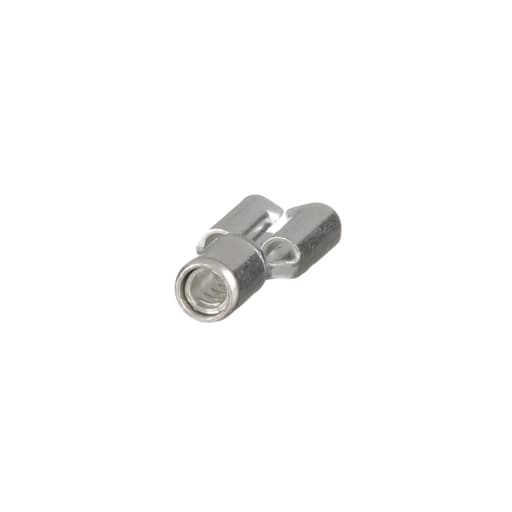

The vibration resistant female disconnect in metallic brass helps overcome the failures caused by high vibration. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.66" (16.8 mm) long and 0.3" (7.6 mm) wide. The disconnect is non-insulated, tin-plated, has a standard barrel configuration and a sleeved barrel. It comes bottles of 100. Prop 65: No - Standards and Certifications: Standards Met: UL Recognized, UL Listed 20H3 E78522; CSA Certified LR31212
