Panduit Corp - Panduit D18-188-C 22-18 AWG Vinyl Barrel Insulated Female Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983822065
Buy American - Y
Catalog Number - D18-188-C
Conductor Size - 18 AWG
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983822065
Part #
101355
Catalog #
D18-188-C
Commercial reference
D18-188-C
12-Digit UPC:
074983822065
Buy American:
Y
Catalog Number:
D18-188-C
Conductor Size:
18 AWG
Country of Origin:
Mexico
ERP_productname:
PAND D18-188-C DISC,FEM,NONINS,22-18AWG,187X020PK1 00
Family Brand Name:
Panduit Corp.
Finish:
Tinned
Heights:
0.1 Inch
Material:
Brass
Overall Length:
0.58 in
Sub Brand:
Pan-Term®
Tc Connection:
Standard
Type:
Disconnect
Voltage:
2,000 Volt
Widths:
0.23 in
Wire Size:
18 AWG
SoneparProductId:
SKU_US_26664063

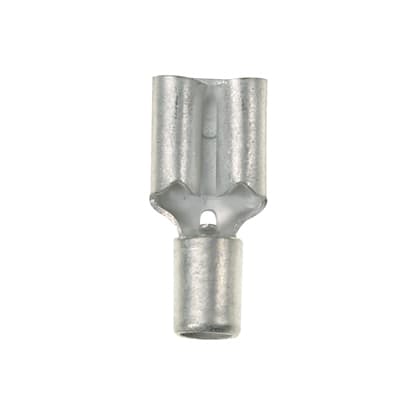

The vibration resistant female disconnect in metallic brass helps overcome the failures caused by high vibration. It has a tab size of 0.187 x 0.020" (4.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.58" (14.7 mm) long and 0.23" (5.8 mm) wide. The disconnect is non-insulated, tin-plated, has a standard barrel configuration and a sleeved barrel. It comes in bottles of 100. Standards and Certifications: Standards Met: UL Recognized, UL Listed 20H3 E78522; CSA Certified LR31212 , C22.2 No.153 - Prop 65: No
