Panduit Corp - Panduit DNF14-187-C Nylon Barrel Insulated Female Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983827145
Buy American - Y
Catalog Number - DNF14-187-C
Color - Blue
Conductor Size - 16-14 AWG
Packaging
1 ea
EAN
00074983827145
Part #
111770
Catalog #
DNF14187C
Commercial reference
DNF14187C
12-Digit UPC:
074983827145
Buy American:
Y
Catalog Number:
DNF14-187-C
Color:
Blue
Conductor Size:
16-14 AWG
Country of Origin:
Mexico
ERP_productname:
PAND DNF14187C DISCONNECT
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Heights:
0.1 Inch
Material:
Brass
Overall Length:
0.76 in
Sub Brand:
Pan-Term®
Tc Connection:
Funnel
Type:
Loose-Piece
Voltage:
300 Volt
Widths:
0.23 in
Wire Size:
16-14 AWG
SoneparProductId:
SKU_US_26573348

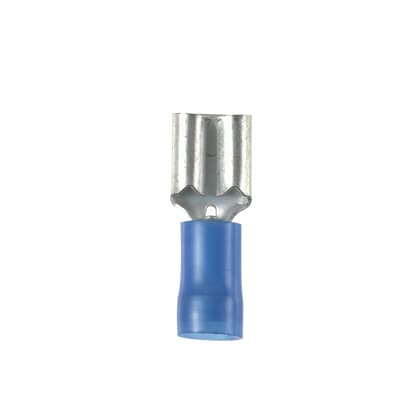

The vibration resistant female disconnect in is made of brass and is tin-plated. It is barrel insulated in a blue, nylon housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100. Standards and Certifications: Standards Met: UL 310 Listed
