Panduit Corp - Panduit DNF14-188FIB-M Disconnect, Blackue, Nylon, 14-16 AWG, 0.19" Tab, PK1000
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983759859
Buy American - Y
Catalog Number - DNF14-188FIB-M
Color - Blue
Conductor Size - 16-14 AWG
Packaging
1 ea
EAN
00074983759859
Part #
112254
Catalog #
DNF14-188FIB-M
Commercial reference
DNF14-188FIB-M
12-Digit UPC:
074983759859
Buy American:
Y
Catalog Number:
DNF14-188FIB-M
Color:
Blue
Conductor Size:
16-14 AWG
Country of Origin:
Mexico
ERP_productname:
PAND DNF14-188FIB-M FEMALE DISCONNECT, NYLON FULLY INSULATED
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Heights:
0.18 Inch
Material:
Brass
Overall Length:
0.78 in
Sub Brand:
Pan-Term®
Tc Connection:
Funnel
Type:
Disconnect
Voltage:
600 Volt
Widths:
0.29 in
Wire Size:
16-14 AWG
SoneparProductId:
SKU_US_29115356

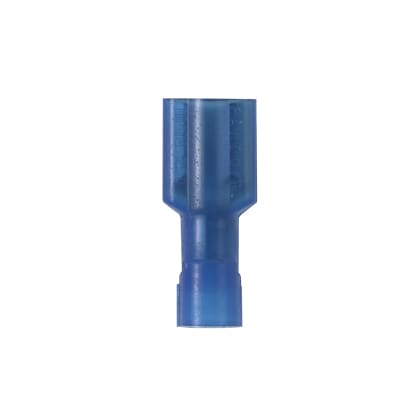

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon housing. It has a tab size of 0.187 x 0.020" (4.8 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.78" (19.8 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 - Prop 65: No
