Panduit Corp - Panduit DNF14-250M-C Nylon Barrel Insulated Male Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983827183
Buy American - Y
Catalog Number - DNF14-250M-C
Color - Blue
Conductor Size - 16-14 AWG
Packaging
1 ea
EAN
00074983827183
Part #
112115
Catalog #
DNF14250MC
Commercial reference
DNF14250MC
12-Digit UPC:
074983827183
Buy American:
Y
Catalog Number:
DNF14-250M-C
Color:
Blue
Conductor Size:
16-14 AWG
Country of Origin:
Mexico
ERP_productname:
PAND DNF14250MC MALE DISCONNECT
Family Brand Name:
Panduit Corp.
Finish:
Nickel
Heights:
0.03 Inch
Material:
Copper
Overall Length:
0.9 in
Sub Brand:
Pan-Term®
Tc Connection:
Standard
Type:
Loose Piece, Standard, Flat
Voltage:
600 Volt
Widths:
0.25 in
Wire Size:
14 AWG
SoneparProductId:
SKU_US_25718816

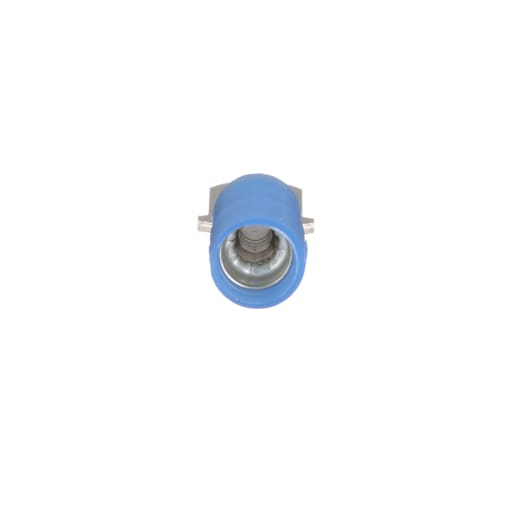

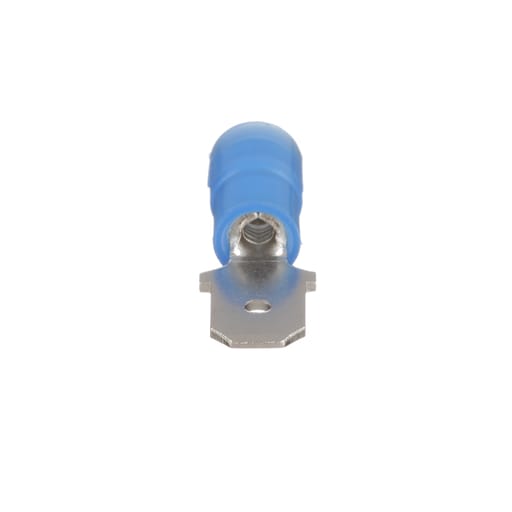

The vibration resistant male tab disconnect is made of copper and is nickel-plated. It is barrel insulated in a blue, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.90" (22.9 mm) long and 0.25" (6.4 mm) wide. The disconnect has a standard barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
