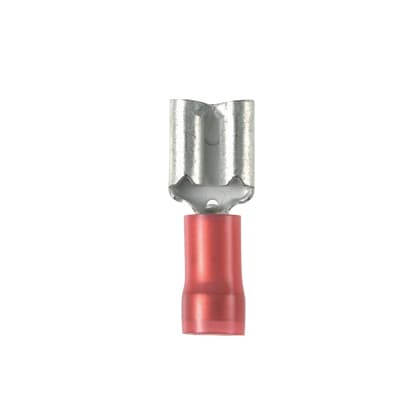

Panduit Corp - Panduit DNF18-110-M Nylon Barrel Insulated Female Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983827053
Buy American - Y
Catalog Number - DNF18-110-M
Color - Red
Conductor Size - 18 AWG
Packaging
1 ea
EAN
00074983827053
Part #
107974
Catalog #
DNF18-110-M
Commercial reference
DNF18-110-M
12-Digit UPC:
074983827053
Buy American:
Y
Catalog Number:
DNF18-110-M
Color:
Red
Conductor Size:
18 AWG
Country of Origin:
Mexico
ERP_productname:
PAND DNF18-110-M DISC,F,RDNY,.110X.032",22-18AWG,IGS ,1000
Family Brand Name:
Panduit Corp.
Finish:
Rust-Proof Plating, Vinyl Coated
Heights:
0.08 Inch
Material:
Brass
Overall Length:
0.69 in
Sub Brand:
Pan-Term®
Tc Connection:
Funnel
Type:
Disconnect
Voltage:
300 Volt
Widths:
0.15 in
Wire Size:
0.5-1.0 AWG
SoneparProductId:
SKU_US_26445331
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.110 x 0.032" (2.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.69" (17.5 mm) long and 0.15" (3.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in boxes of 1000. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
