Panduit Corp - Panduit DNF18-111FIB-C Nylon Fully Insulated Female Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983826759
Buy American - Y
Catalog Number - DNF18-111FIB-C
Color - Red
Conductor Size - 22 AWG
Packaging
1 ea
EAN
00074983826759
Part #
112145
Catalog #
DNF18-111FIB-C
Commercial reference
DNF18-111FIB-C
12-Digit UPC:
074983826759
Buy American:
Y
Catalog Number:
DNF18-111FIB-C
Color:
Red
Conductor Size:
22 AWG
Country of Origin:
Mexico
ERP_productname:
PAND DNF18-111FIB-C INS FEM DISCONN
Family Brand Name:
Panduit Corp.
Finish:
Rust-Proof Plating, Vinyl Coated
Heights:
0.16 Inch
Material:
Brass
Overall Length:
0.71 in
Sub Brand:
Pan-Term®
Tc Connection:
Funnel
Type:
Disconnect
Voltage:
600 Volt
Widths:
0.19 in
Wire Size:
0.4-1.0 mm.
SoneparProductId:
SKU_US_25897057

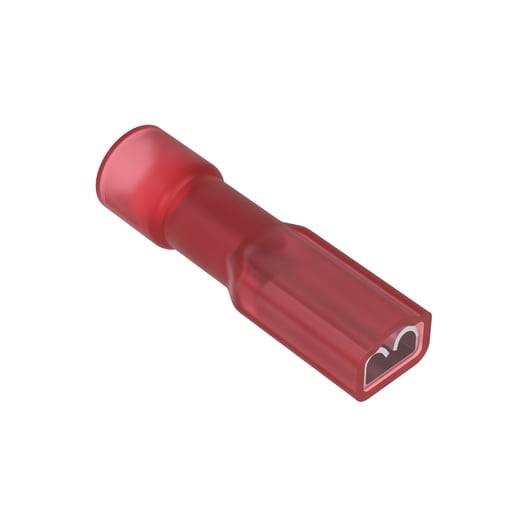

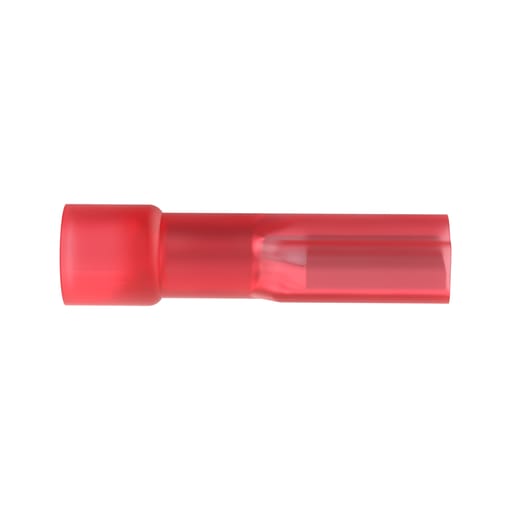

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon housing. It has a tab size of 0.110 x 0.020" (2.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.71" (18.0 mm) long and 0.19" (4.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100. Prop 65: No - Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
