Panduit Corp - Panduit DNF18-187-C Nylon Barrel Insulated Female Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983827084
Buy American - Y
Catalog Number - DNF18-187-C
Color - Amber,Green,Red,White
Conductor Size - 22 AWG
Packaging
1 ea
EAN
00074983827084
Part #
112171
Catalog #
DNF18187C
Commercial reference
DNF18187C
12-Digit UPC:
074983827084
Buy American:
Y
Catalog Number:
DNF18-187-C
Color:
Amber,Green,Red,White
Conductor Size:
22 AWG
Country of Origin:
Mexico
ERP_productname:
PAND DNF18187C DISCONNECT
Family Brand Name:
Panduit Corp.
Finish:
Rust-Proof Plating, Vinyl Coated
Heights:
0.1 Inch
Material:
Brass
Overall Length:
0.76 in
Sub Brand:
Pan-Term®
Tc Connection:
Funnel
Type:
E1 Plus Solid State Relay
Voltage:
300 Volt
Widths:
0.23 in
Wire Size:
0.5-1.0 AWG
SoneparProductId:
SKU_US_26277738

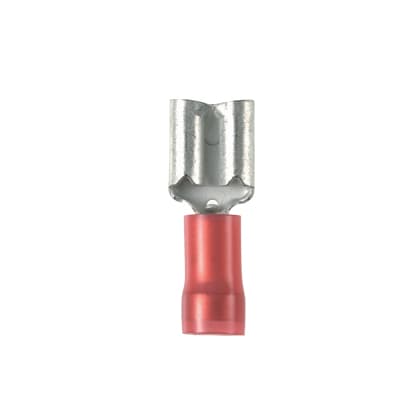

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
