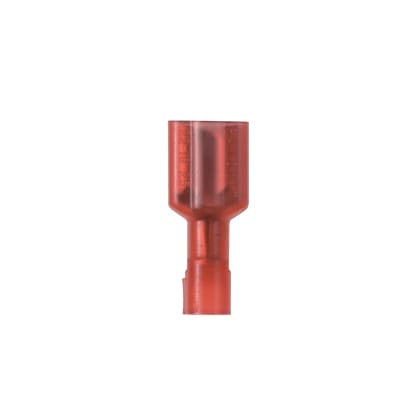

Panduit Corp - Panduit DNF18-250FI-L Nylon Fully Insulated Female Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983120383
Buy American - Y
Catalog Number - DNF18-250FI-L
Color - Red
Conductor Size - 22-18 AWG
Packaging
1 ea
EAN
00074983120383
Part #
214795
Catalog #
DNF18-250FI-L
Commercial reference
DNF18-250FI-L
12-Digit UPC:
074983120383
Buy American:
Y
Catalog Number:
DNF18-250FI-L
Color:
Red
Conductor Size:
22-18 AWG
Country of Origin:
Mexico
Depths:
0.94 Inch
ERP_productname:
PAND DNF18-250FI-L FEMALE .250 TAB DISCONNECT NYLON FULLY INSULATED
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Heights:
0.21 Inch
Material:
Brass
Overall Length:
0.94 in
Sub Brand:
Pan-Term®
Tc Connection:
Funnel
Type:
Loose-Piece
Voltage:
600 Volt
Widths:
0.36 in
Wire Size:
22-18 AWG
SoneparProductId:
SKU_US_25459057
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.94" (23.9 mm) long and 0.36" (9.1 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 50. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
