Panduit Corp - Panduit DNF18-250FI-M Disconnect, Fully Insulated, Red, Nylon, 22-18 AWG
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983761494
Buy American - Y
Catalog Number - DNF18-250FI-M
Color - Red
Conductor Size - 22 AWG
Packaging
1 ea
EAN
00074983761494
Part #
105754
Catalog #
DNF18-250FI-M
Commercial reference
DNF18-250FI-M
12-Digit UPC:
074983761494
Buy American:
Y
Catalog Number:
DNF18-250FI-M
Color:
Red
Conductor Size:
22 AWG
Country of Origin:
Mexico
ERP_productname:
PAND DNF18-250FI-M DISC,F,RDNY,.250X.032",22-18AWG,IGS ,1000
Family Brand Name:
Panduit Corp.
Finish:
Tinned
Heights:
0.21 Inch
Material:
Brass
Overall Length:
0.94 in
Sub Brand:
Pan-Term®
Tc Connection:
Funnel Entry
Type:
Disconnect
Voltage:
600 Volt
Widths:
0.36 in
Wire Size:
18 AWG
SoneparProductId:
SKU_US_29028099

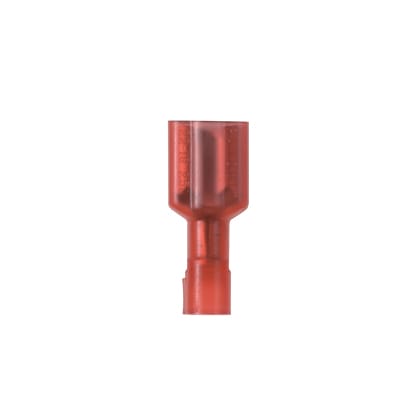

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.94" (23.9 mm) long and 0.36" (9.1 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in boxes of 1000. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
