Panduit Corp - Panduit DNF18-250FIMB-D Nylon Fully Insulated Male Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983824168
Buy American - Y
Catalog Number - DNF18-250FIMB-D
Color - Red
Conductor Size - 22 AWG
Packaging
1 ea
EAN
00074983824168
Part #
219793
Catalog #
DNF18-250FIMB-D
Commercial reference
DNF18-250FIMB-D
12-Digit UPC:
074983824168
Buy American:
Y
Catalog Number:
DNF18-250FIMB-D
Color:
Red
Conductor Size:
22 AWG
Country of Origin:
Mexico
ERP_productname:
PAND DNF18-250FIMB-D DISC,M,RDNY,.250X.032",22-18AWG,BS, 500
Family Brand Name:
Panduit Corp.
Finish:
Nickel
Heights:
0.34 Inch
Material:
Brass
Overall Length:
0.91 in
Sub Brand:
Pan-Term®
Tc Connection:
Standard
Type:
Disconnect
Voltage:
600 Volt
Widths:
0.45 in
Wire Size:
18 AWG
SoneparProductId:
SKU_US_26696469

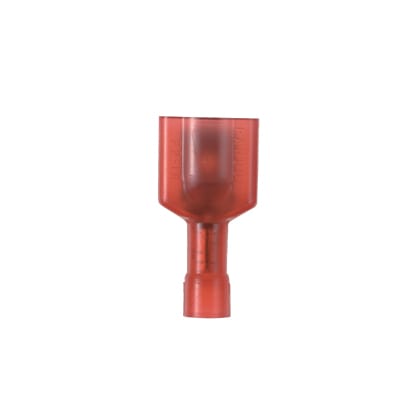

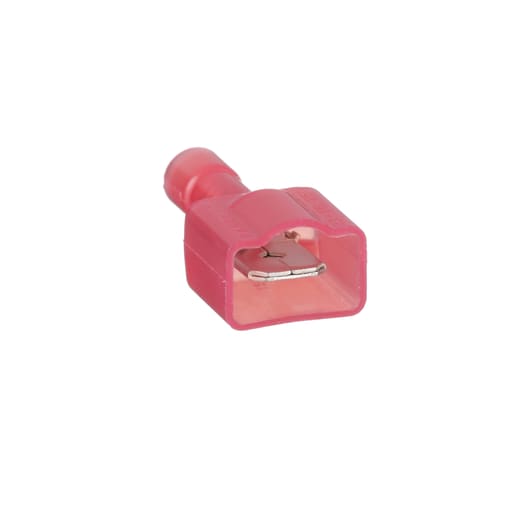

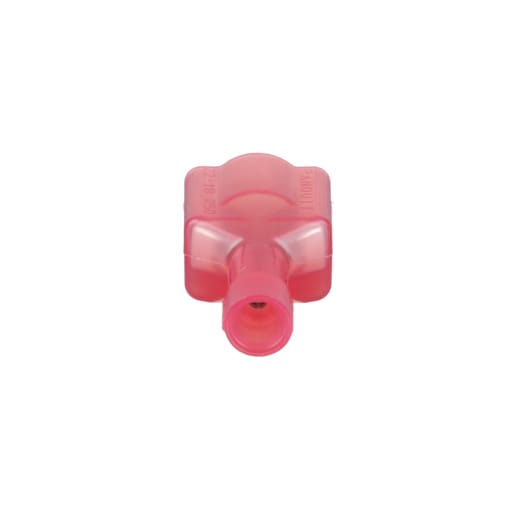

The vibration resistant male tab disconnect is made of brass and is nickel-plated. It is fully insulated in a red, nylon oversized housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.91" (23.1 mm) long and 0.45" (11.4 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in boxes of 500. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
