Panduit Corp - Panduit DNF18-250M-M Nylon Barrel Insulated Male Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983827138
Buy American - Y
Catalog Number - DNF18-250M-M
Color - Red
Conductor Size - 22 AWG
Packaging
1 ea
EAN
00074983827138
Part #
203854
Catalog #
DNF18-250M-M
Commercial reference
DNF18-250M-M
12-Digit UPC:
074983827138
Buy American:
Y
Catalog Number:
DNF18-250M-M
Color:
Red
Conductor Size:
22 AWG
Country of Origin:
Mexico
ERP_productname:
PAND DNF18-250M-M DISC,M,RDNY,.250X.032IN,22-18AWG,IG S,1000
Family Brand Name:
Panduit Corp.
Finish:
Nickel
Heights:
0.03 Inch
Length:
0.9 Inch
Material:
Copper
Overall Length:
0.9 in
Product Type:
Terminals
Sub Brand:
Pan-Term®
Tc Connection:
Standard
Type:
Disconnect
Voltage:
600 Volt
Widths:
0.25 in
Wire Size:
22-18 AWG
SoneparProductId:
SKU_US_26510975

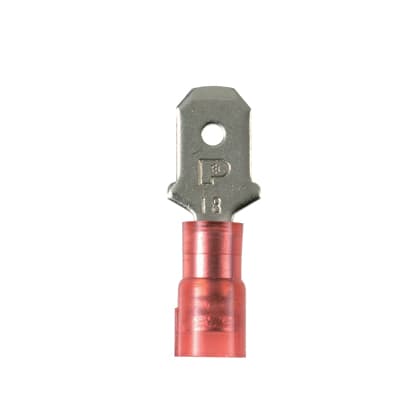

The vibration resistant male tab disconnect is made of copper and is nickel-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.90" (22.9 mm) long and 0.25" (6.4 mm) wide. The disconnect has a standard barrel configuration and an insulation grip sleeve barrel. It comes in boxes of 1000. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
