Panduit Corp - Panduit DNFR14-206FIB-L Loose Piece Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983120253
Buy American - Y
Catalog Number - DNFR14-206FIB-L
Color - Blue
Conductor Size - 14 AWG
Packaging
1 ea
EAN
00074983120253
Part #
153151
Catalog #
DNFR14-206FIB-L
Commercial reference
DNFR14-206FIB-L
12-Digit UPC:
074983120253
Buy American:
Y
Catalog Number:
DNFR14-206FIB-L
Color:
Blue
Conductor Size:
14 AWG
Country of Origin:
Mexico
Depths:
0.6 Inch
ERP_productname:
PAND DNFR14-206FIB-L FEMALE DISCONNECT, RIGHT ANGLE, NYLON FU
Family Brand Name:
Panduit Corp.
Finish:
Tinned
Heights:
0.6 Inch
Material:
Brass
Overall Length:
0.58 in
Sub Brand:
Pan-Term®
Tc Connection:
Funnel Entry
Type:
Disconnect
Voltage:
600 Volt
Widths:
0.6 in
Wire Size:
14 AWG
SoneparProductId:
SKU_US_29632163

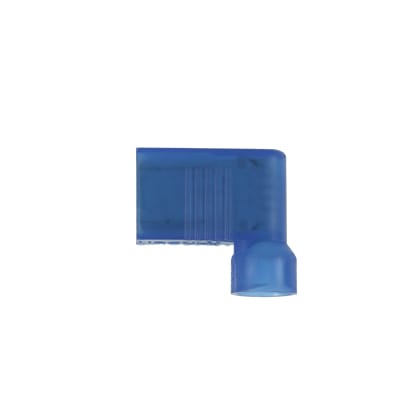

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in blue nylon. It has a tab size of 0.205/0.187 x 0.020" (5.2/4.7 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.58" (14.7 mm) long, 0.37" (9.4 mm) wide, and has a depth of 0.60" (15.2 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in bottles of 50. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 - Prop 65: No
