Panduit Corp - Panduit DNG14-250FB-M Loose Piece Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983514373
Buy American - Y
Catalog Number - DNG14-250FB-M
Color - Blue
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983514373
Part #
210189
Catalog #
DNG14-250FB-M
Commercial reference
DNG14-250FB-M
12-Digit UPC:
074983514373
Buy American:
Y
Catalog Number:
DNG14-250FB-M
Color:
Blue
Country of Origin:
Mexico
ERP_productname:
PAND DNG14-250FB-M DISC,FEMALE,16-14AWG,NYL,DBLCRMP,PK 1000
Family Brand Name:
Panduit Corp.
Finish:
Rust-Proof Plating, Vinyl Coated
Heights:
1/4 Inch
Material:
Brass
Overall Length:
0.93 in
Sub Brand:
Supra-Grip®
Tc Connection:
Funnel
Type:
Disconnect
Voltage:
600 Volt
Widths:
0.35 in
Wire Size:
16-14 AWG
SoneparProductId:
SKU_US_315795057

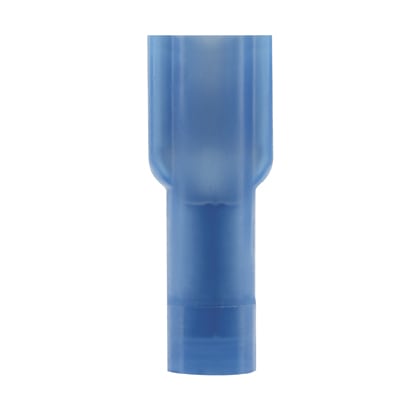

The Supra-Grip™ female disconnect is made of brass and is tin-plated. It is fully insulated in blue nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.93" (23.6 mm) long and 0.35" (8.9 mm) wide. The disconnect has a double crimp funnel entry barrel configuration and a butted seam barrel with an integrated metal insulation grip. It comes in boxes of 1000. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212 ,C22.2 No.153, UL Recognized
